Video System | 4K@30fps, 4K@25fps, 1080P@60fps, 1080P@50fps, 1080I@fps60, 1080I@50fps, 1080P@30fps, 1080P@25fps, 720P@60fps, 720P@50fps. | | |
Sensor | 1/2.5'', CMOS, Max Effective Pixel: 851M | Video S/N | ≥55dB |
Scanning Mode | Progressive | Shutter | 1/30s ~ 1/10000s |
Lens | 12X, f4.4mm ~ 52.8mm, F1.8~F2.6 | Backlight Compensation | Support |
White Balance | Auto, Indoor, Outdoor, One Push, Manual | Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Digital Noise Reduction | 2D,3D digital noise reduction | Horizontal Angle of View | 70.1° ~ 7.4° |
Pan Speed Range | 1.7° ~ 100°/s | Vertical Angle of View | 40.7° ~ 4.2° |
Tilt Speed Range | 1.7° ~ 69.9°/s | Horizontal Rotation Range | ±170° |
Number of Preset | 255 | Vertical Rotation Range | ±30° |
Preset Accuracy | 0.1° | | |
| | | |

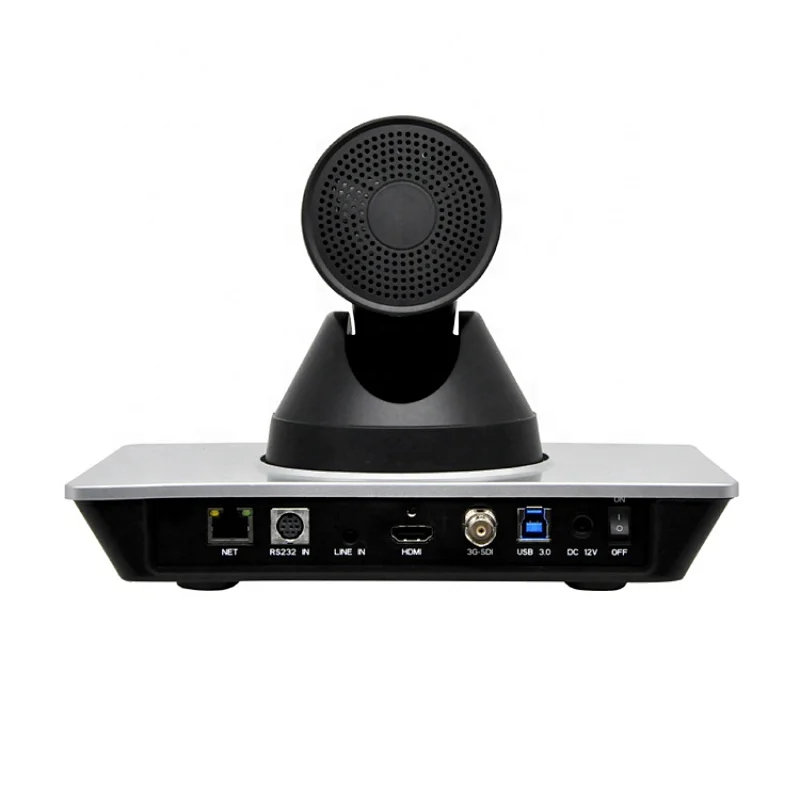

HD Output | 1xHDMI: version 2.0 | | |
USB Interface | USB3.0 | | |
Network | 1xRJ45: 10M/100M Ethernet Interface | | |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | | |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | | |
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | | |
Power Jack | JEITA type (DC IN 12V) | | |
| | | |
Input Voltage | DC 12V | | |
Current Consumption | 0.5 A | | |
Operating Temperature | -10°C ~ 40°C | | |
Storage Temperature | -40°C ~ 60°C | | |
Power Consumption | 6.24W | | |
Size | 200mm x 176mm x 130mm | | |
Net Weight | 1.35kg | | |
