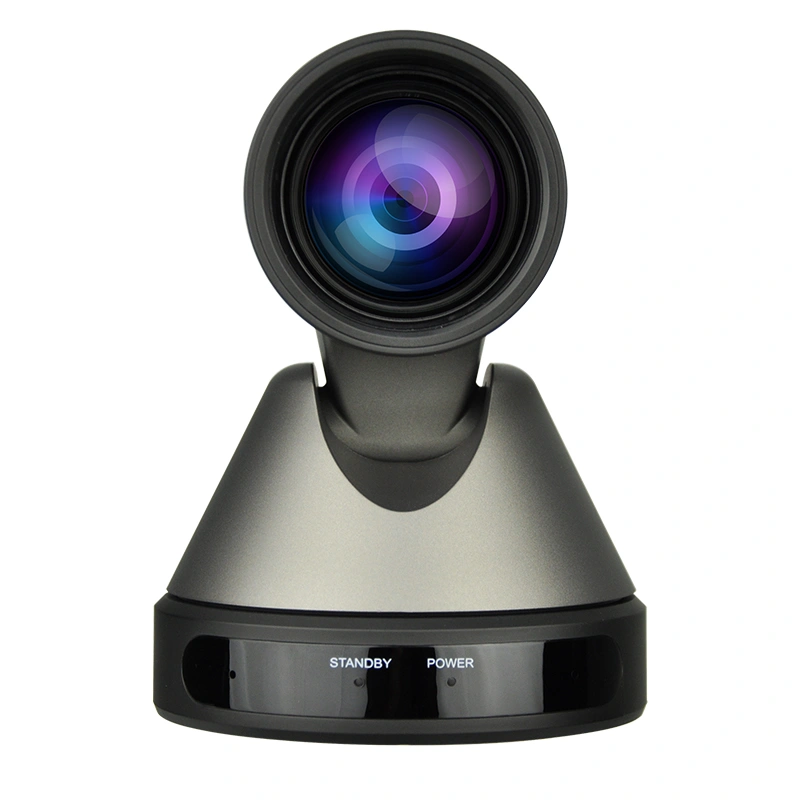

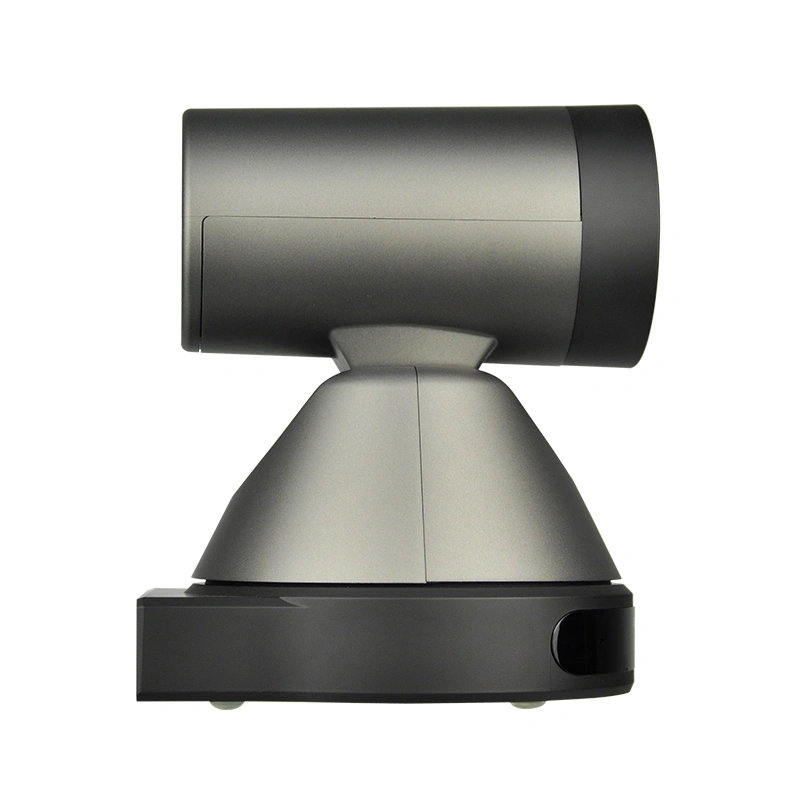

Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera
Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera

Video Room Systems 1080 Full HD 12x USB30 HD Video Conference Camera

Model NO.:
VHD-V71U
Quantity:
  • Place of Origin:CN;GUA
  • Simultaneous Interpretation:No
  • Model Number:VHD-V71U
  • Brand Name:VHD
  • Type:Video Conference System
  • Function:Video Conference
  • Product Name:1080 Full HD 12x USB30 Video Conference Camera
  • Video Format:1080p60,1080p50, 1080i/60,1080i50,1080p30, etc.
  • Sensor:1/2.7", CMOS, Effective Pixel: 2.07M
  • Scanning Mode:Progressive
  • Lens:12X, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
  • Digital Zoom:16x
  • Input/Output Interface:USB3.0; RS232; RS485
  • Input Voltage:DC 12V
  • Size:128.5mmx 118mmx 156.2mm
  • Net Weight:0.91kg
Product Description

1080 Full HD 12x USB30 Video Conference Camera

Main Features

---Completely New Look

Designed with worm gear transmission, completely new look, mini size, two colors for choosing from.


---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC protocol.


---Built-in Micphone (Optional)
Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.


---1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.


---Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.


---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.


---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.


---Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

1080 Full HD 12x USB30 Video Conference Camera1080 Full HD 12x USB30 Video Conference Camera1080 Full HD 12x USB30 Video Conference Camera

Technical Parameters

Technical Parameter

Product Name1080 Full HD 12x USB30 Video Conference Camera
Camera
Video SystemHD: 1080p/60(Optional), 1080p/50(Optional), 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning ModeProgressive
Lens12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom16x
Minimal Illumination0.5 Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
Video S/N≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -25° ~ +25°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V FlipSupport
Image FreezeSupport
Number of Preset 255
Preset Accuracy 0.1°
USB Features
Operate SystemWindows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux
Color System / CompressionYUV 4:2:2 / H.264 / MJPEG
Video FormatUSB3.0: 1080p/60(Optional), 1080p/50(Optional), 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50
Audio on USBSupport
USB Video Communication ProtocolUVC 1.0 ~ UVC 1.5
UVC PTZSupport
Input/Output Interface
USB Interface1xUSB3.0: Type B female jack
Audio Interface1-ch: 3.5mm Audio Interface, Line In
Communication Interface1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: Share with RS232 Out, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power JackJEITA type (DC IN 12V)
Generic Specification
Input VoltageDC 12V
Current Consumption1.0A (Max)
Operating Temperature-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption12W (Max)
MTBF>30000h
Size128.5x118x156.2mm
Net Weight0.91K g
