- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Model Number:VHD-V71S
- Brand Name:VHD
- Type:Video Conference System
- Function:Video Conference
- Product Name:CMOS 1080P 60fps HD SDI Camera
- Video Format:1080p60/50, 1080i60/i50,1080p30/25; 720p50/30/25
- Sensor:1/2.7", CMOS, Effective Pixel: 2.07M
- Scanning Mode:Progressive
- Lens:12X, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
- Digital Zoom:16x
- Input/Output Interface:3G-SDI; RS232
- Input Voltage:DC 12V
- Size:128.5mmx 118mmx 156.2mm
- Net Weight:0.91kg

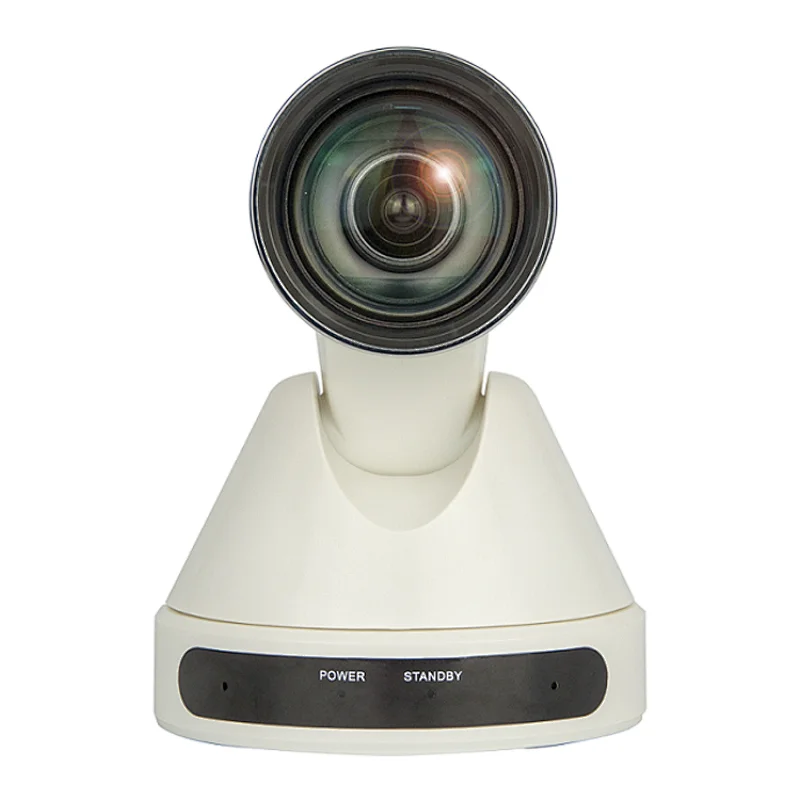

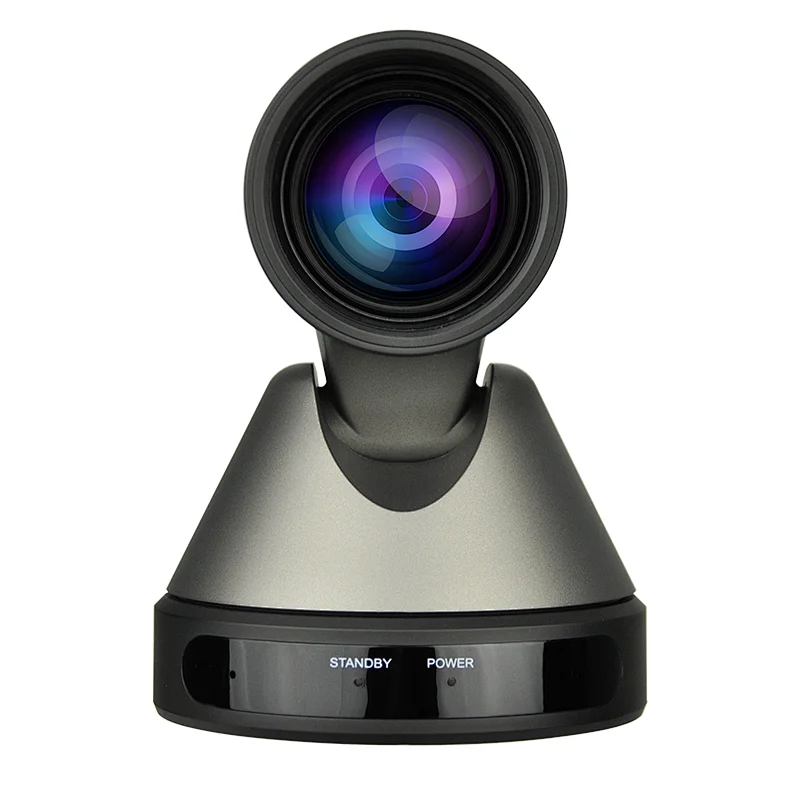

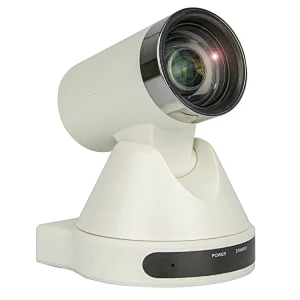

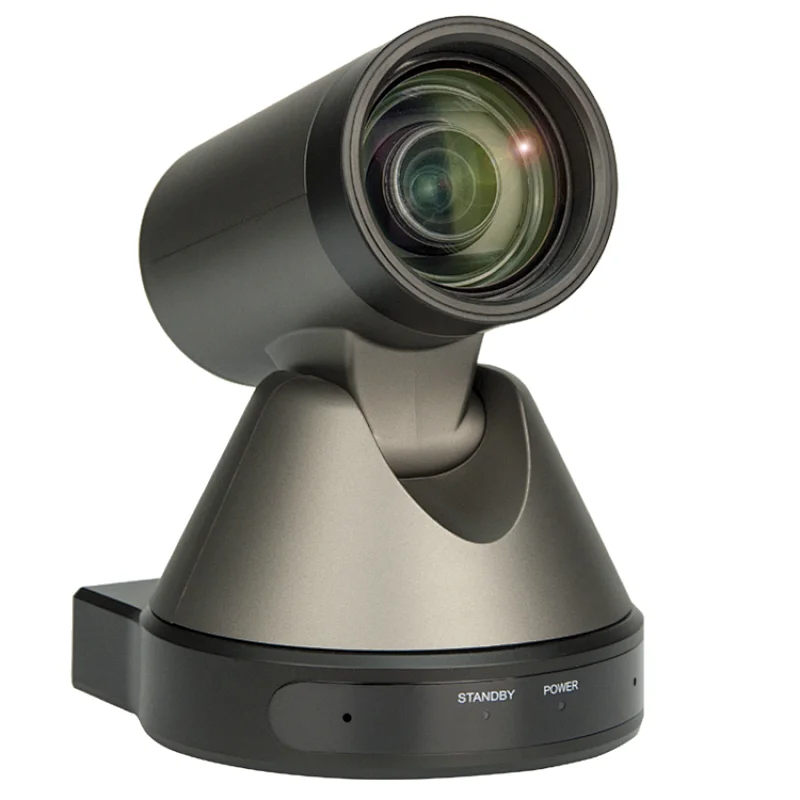

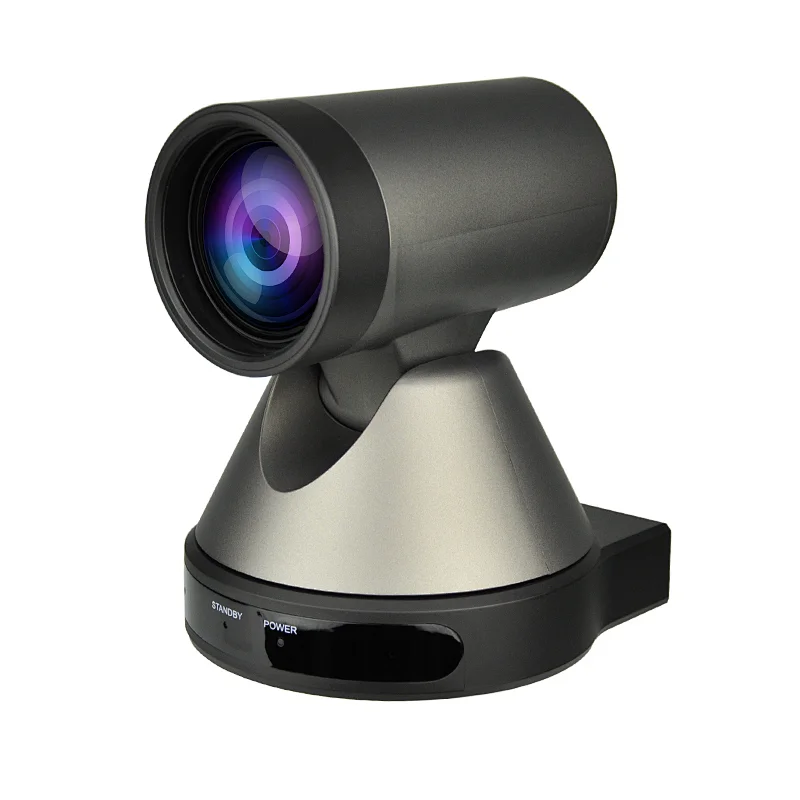

CMOS 1080P 60fps HD SDI Camera
Main Features
---3G-SDI
Support 3G-SDI, max support to 1080@60fps uncompression original video signal, and compatibility all HD-SDI format.
---Completely New Look
Designed with worm gear transmission, completely new look, mini size.
---1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
---Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
Technical Parameter
| Product Name | CMOS 1080P 60fps HD SDI Camera |
| Camera | |
| Video System | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 72.5° ~ 6.9° |
| Vertical Angle of View | 44.8° ~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -25° ~ +25° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 0.7° ~ 28°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |

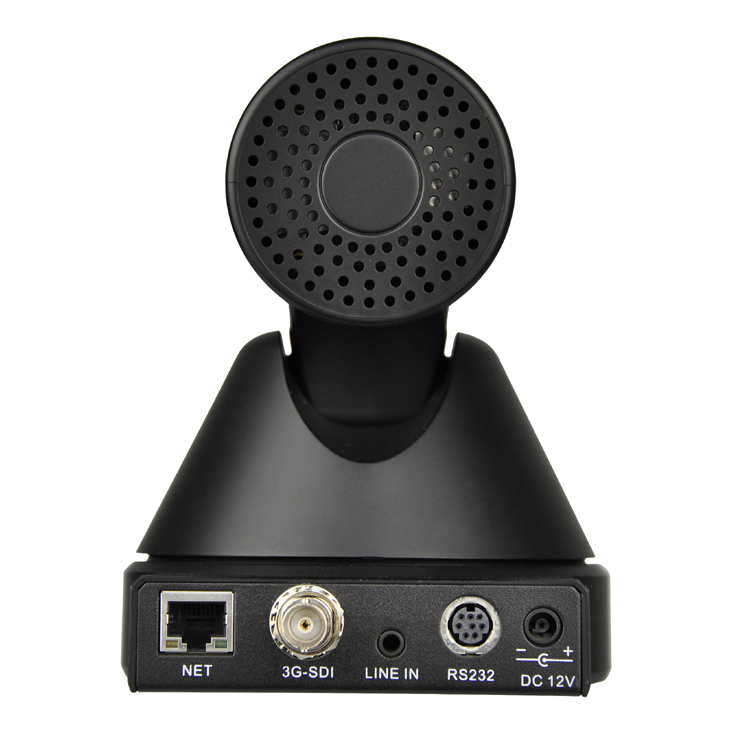

| Input/Output Interface | |
| HD Output | 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| MTBF | >30000h |
| Size | 128.5x118x156.2mm |
| Net Weight | 0.91K g |
ValueHD Corporation
ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded 9 years, the company has been focusing on the high-definition video camera and its accessories. Its products range from high-definition video conferencing PTZ camera, high-definition camera module with zoom lens for video surveillance, high-definition network camera, high-definition network camera with intelligence analysis capabilitie, MCU,All-in-one camera, microphone and etc.
ValueHD Corporation has successfully developed a variety of camera products. The technology and maturity of the product are among the leading group in this field. The company’s R & D model has gradually developed from integration at the module level to integration at the chip level. The latest types support 1080P60, WDR, and have high S/N ratio. The successful R&D works has proved that the company has mastered core techniques required for developing high-definition cameras, such as the ISP algorithm, video codec algorithm. Like many large company in the industry,we have also paid more attention on the reliability of hardware and software.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
The company welcomes customers to purchase products and services, as well as all forms of technology and product collaboration!
1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
