- Type:Audio Conference System
- Type:Video Conference System
- Function:Voting
- Simultaneous Interpretation:yes
- Place of Origin:CN
- Model Number:C9 Pro

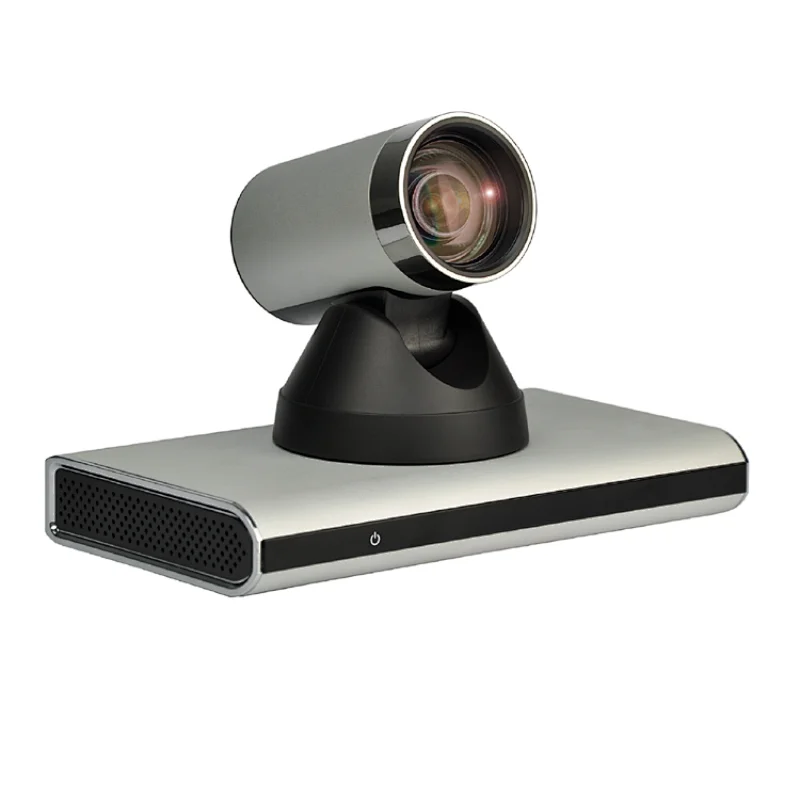

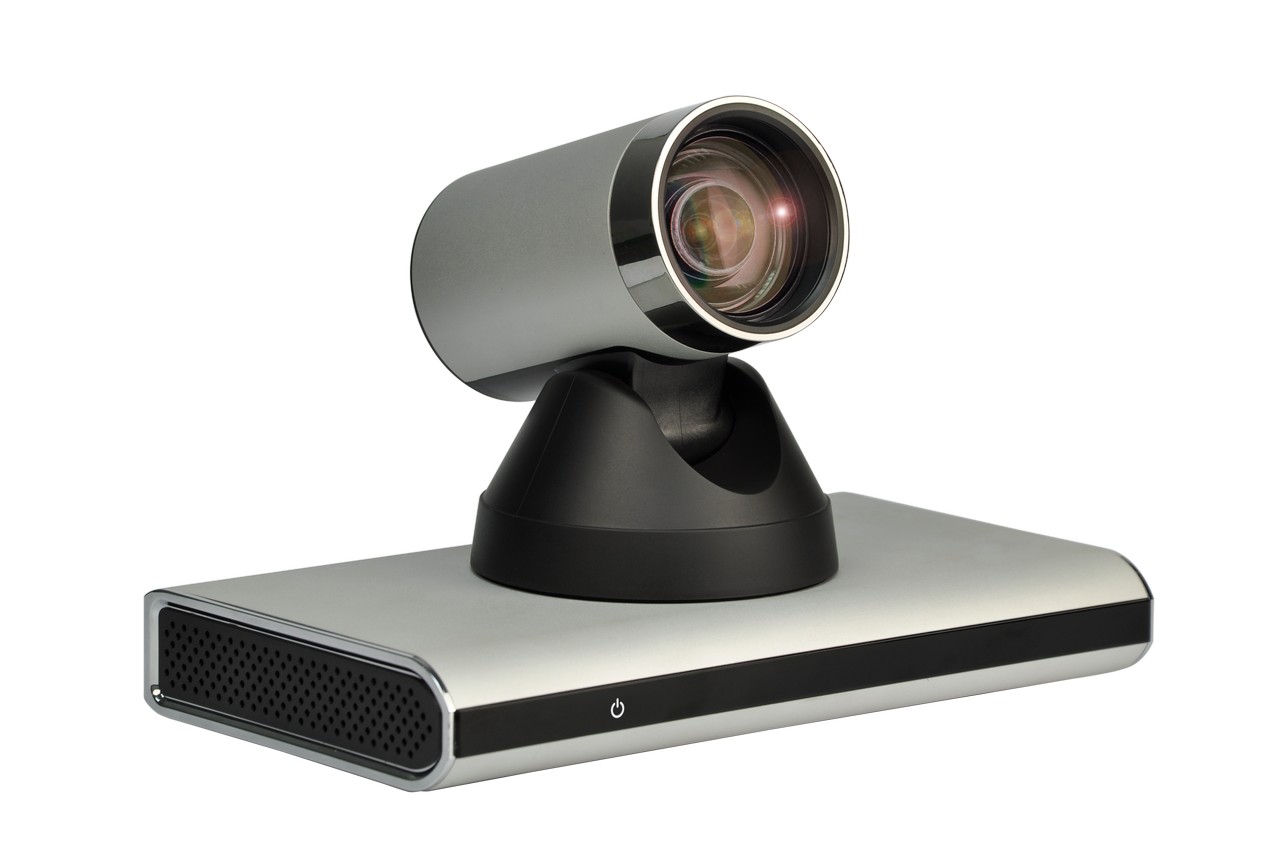

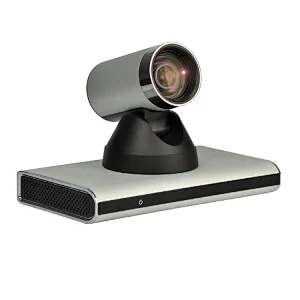

• New appearance with all metal
A new appearance, use integrative design with all metal, bring you more sedate solid texture.
• All-in-one Design
All-in-one design, Camera + Video Conferencing System buit-in-one device, simple to use. Support external microphone, small size, easy to install.
• 72.5° Wide-angle Lens
Use 72.5° wide-angle high quality lens, support 12x optical zoom.
• Standard protocols, fusion
Support the standard SIP, H.323 protocol, compatible with the industry mainstream standard terminal and the network side device
• Low bandwidth, high-definition
Support for the latest HP coding standard H.264, about 50% less bandwidth requirements compare with prervious encode standard.
• Multiple type of microphone support
Support digital microphone, USB microphone, general microphone input, adapted to different conference scene, more meet the demand of audio.
• Wi-Fi support (optional)
Built-in Wi-Fi module for optional, access networks by wireless, wiring simple, flexible and convenient.
• High network adaptability and security
Support H.460 through firewall technology, solution and solve the safety of the public and private network connection. Support multiple encryption protocol, such as H.235, SRTP and AES-128 etc. omni-directional to protect the communication security.
• 1080P Full HD
Support 1080P Full HD video, except built-in HD camera, support another DVI-I (compatible with HDMI, VGA/YPbPr) interface for HD video input, 2 channel HDMI for output.
• Base on embedded DSP solution
Base on embedded DSP hardware solutions, high efficiency, low latency.
• Full open API
Full open API, support the development of third-party applications, easy to implement secondary development for customers.
• Bult-in HD MCU (optional)
Support build-in MCU, max to implement 1 + 3 end mode HD video conference, very appropriate to use video conference on the small and medium-sized enterprises, low-cost, simple maintenance and so on.
• Bult-in VPN
Support build-in VPN (Server / Client) , can implement private network without a private network.
• 8G storage capacity
Built-in 8G EMMC storage, faster to start, more storage capacity.
• Remote, local recorded broadcast
Support remote recording with one PC only, USB flash disk recording, PnP (Plus and Play), protecting meeting content.
| Model | C9 Pro |
| Name | All-in-One HD Video Conferencing System |
| System Units | |
| Include Packages | • HD codec (built-in HD camera) x 1 • Omni-array microphone ( pick up distance: >= 5m ) x 1 • Remote control x 1 • AC power adapter x 1 • AC power cable x 1 • HDMI cable (1.5m) x 2 • XLR jack to 3.5mm jack cable x 1 • User manual (Quick Start, Quick Installation Guide) x 1 |
| Standard and Protocols | |
| Standards and Protocols | ITU-T H.323, IETF SIP |
| Video Standards and Protocols | H.261, H.263, H.263+, H.263++, H.264, H.264 High Profile |
| Audio Standards and Protocols | G.711, G.722, G.722.1*, G.722.1C*, AAC-LD, G.726, SILK |
| Dual Stream | ITU-T H.239, BFCP |
| Other Standards | H.221, H.224, H.225, H.235, H.241, H.245, H.281, H.350, H.460, T.140, DTMF |
| Network Standards and Protocols | TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/TLS, RTP, RTCP, RFC3261, RFC3264, RFC2190, RFC3407, RFC2833, RFC4585(RTP/AVPF), SNTP, ARP |
| Video Specifications and Features | |
| People Video Resolution | • 1080p, Guaranty bandwidth: 1024Kbps • 720p, Guaranty bandwidth: 512Kbps • w448p/4SIF/4CIF, Guaranty bandwidth: 256Kbps • w288p/SIF/CIF, Guaranty bandwidth: 128Kbps |
| Content Video Resolution | • Input: VGA (640x480), SVGA (800x600), XGA(1024x768), WXGA(1280x768), WXGA (1280x800), 1280x960, SXGA(1280x1024), 1360x768, 1366x768, 1440x900, 1600x900, 720p(1280x720), 1080p(1920x1080) • Coding/Decoding Resolution: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080 • Output: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080 |
| Dual Stream | Dual 1080p or dual 720p |
| Built-in 1080p HD Camera | • Video input pixels: 1080p • Sensor: 2.07 mega effective pixel, 1/2.7-inch CMOS • Zoom: 12x optical zoom • Maximum horizontal angle: 72.5° horizontal field of view • Panning/Tilting angle: +/-170° pan, -30° ~ +90° tilt • Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF) • Far-end camera control • Upside-down mounting with automatic flipping of picture • Number of preset positions: 100 |
| Other Video Features | PiP (Picture in Picture), PoP (Picture outside Picture) |
| Audio Specifications and Features | |
| Audio features | • AEC (Acoustic Echo Cancellation) • AGC (Automatic Gain Control) • ANS (Acoustic Noise Suppression) • Lip synchronization |
| Security and Stability | |
| Network | FEC (Forward Error Correction), ARQ (Automatic Repeat-reQuest) etc. |
| Firewall Traversal:H.460, ICE | |
| Security | • H.235 (AES) signaling and media stream encryption • Administrator password, SSH/HTTPS |
| Bandwidth | |
| IP | 64kbps ~ 8Mbps |
| Clound Integrate | |
| Support Brands | • ZijingCloud |

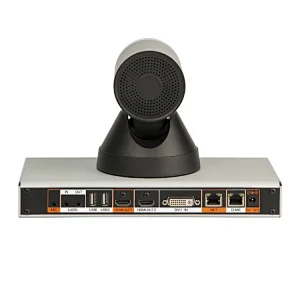

| Interfaces | |
| Audio Input | 1 x 3.5mm line-in jack, 1 x 3.5mm mic-in jack, 1 x RJ45 digtial mic-in jack |
| Audio Output | 1 x 3.5mm line-out jack, 1 x HDMI audio output |
| Video Input | 1 x Built-in HD camera input 1 x DVI-I (HDMI, VGA/YPbPr) |
| Video Output | 2 x HDMI |
| USB Interface | 2 x USB2.0 Host (support USB flash disk, USB micphone etc.) |
| Network Interface | 1 x RJ45: 10/100 Base-T 1 x Wireless: 802.11a/b/g/n Wi-Fi (optional) |
| Application Features | |
| Languages | Simplified Chinese, Traditional Chinese, English, Polish etc. |
| Approval and Compliance | • 1000 local address book and call history |
| Special Features | • Audio associated with presentation • Support"SameView" • Timing power on and power off • Automatic standby and wake up on incoming call • Support DNS SRV • Incoming call password • Asymmetric bandwidth • Built-in VPN • Automatic to get static NAT address • PIP: 1/16 picture size, optional position • Split output: Bi-screen and tri-screen display • Network address book • Support SDK API • Bulit-in MCU (optional) • Support web-based conference management • Support USB micphone • Remote upgrade by network • Wi-Fi (optional) |
| Physical Characteristics | |
| Dimensions | • Codec dimensions (L x W x H): 258mm x 146mm x 170mm • Package dimensions (L x W x H): 304mm x 248mm x 257mm • Net weight: 1.7Kg • Package weight: 2.5Kg |
| Electrical | • Working voltage: AC 100V ~ 240V, DC 12V • Working frequency: 50/60Hz • Power consumption: 24W |
| Environmental Specification | • Operating temperature: 0°C to 40ºC • Operating humidity: 10% to 80% • Non-Operating temperature: -40º to -70ºC • Non-Operating humidity (non-condensing): 0% to 95% • Peripheral noise: < 46 dBA SPL • Lowest luminance: 5 lux • Recommended luminance: > 300 lux |
| Approval and Compliance | CE, RoHS, WEEE, REACH, UL, FCC, CCC |
Since founded 12 years, the company has been focusing on the high-definition video camera and its accessories. Its products range from high-definition video conferencing PTZ camera, high-definition camera module with zoom lens for video surveillance, high-definition network camera, high-definition network camera with intelligence analysis capabilitie, MCU, All-in-one camera, microphone and etc.
Our company has successfully developed a variety of camera products. The technology and maturity of the product are among the leading group in this field. The company’s R & D model has gradually developed from integration at the module level to integration at the chip level. The latest types support 1080P60, WDR, and have high S/N ratio. The successful R&D works has proved that the company has mastered core techniques required for developing high-definition cameras, such as the ISP algorithm, video codec algorithm. Like many large company in the industry,we have also paid more attention on the reliability of hardware and software.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
A:We provide complete after-sales service,2 years product warranty period.
B:If there have any quality problem,it can be replaced a new one.
C:Powerful technical support,no worries about the operation.
