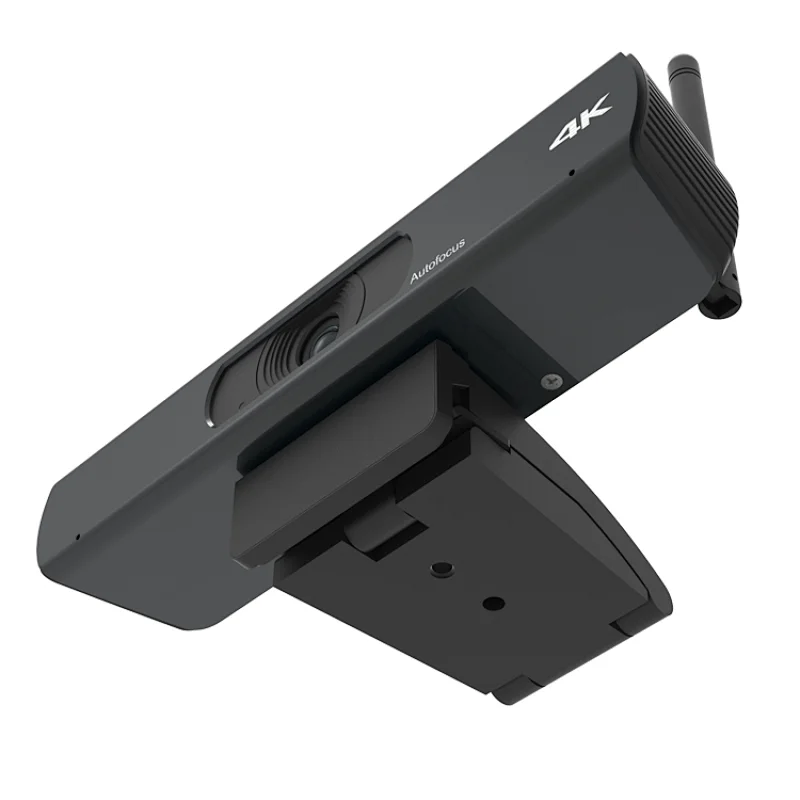

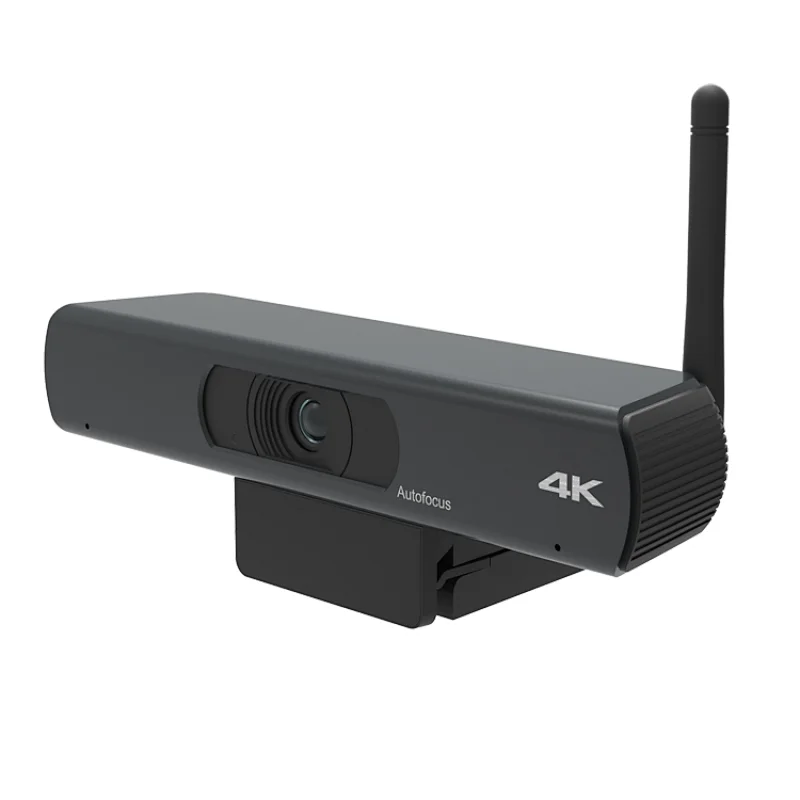

In this age where we rely so much on technology to communicate, the 4K Conference Room Camera from ValueHD is your go-to camera to ensure productive and untroubled video conferences.
4K Conference Room Camera supports 4K Ultra HD camera video and a view angle of 46, 84, and 120 degrees. It captures 30 frames per second and it is designed with highly sensitive autofocus technology which automatically adjusts the lenses to allow sharp image quality even during close-ups. It’s designed with an automatic low-light correction algorithm that delivers vivid and clear video quality despite dim light conditions. These are very convenient features that facilitate a productive video conference.
4K Conference Room Camera's built-in microphone is not only highly sensitive, but it also allows the sound to be crisp and clear despite being in a loud environment by tuning out annoying background noises and allowing participants to focus on the meeting with fewer distractions.
- Product Name:True 4K Ultra HD Wireless Camera
- Video Format:4K@30fps/25fps
- Sensor:1/2.5", CMOS, Effective Pixel: 8M
- Scanning Mode:Progressive
- Lens:Focus: f=7.35mm; f=3.5mm; f=2.8mm
- Input/Output Interface:RJ45; USB2.0
- Input Voltage:DC 12V / PoE (802.3af)
- Autofocus:Support
- Size:194mmx34mmx42mm (without bracket)
- MTBF:30000h
- Simultaneous Interpretation:No
- Type:Video Conference System
- Function:Video Conference
- Place of Origin:CN;GUA
- Brand Name:VHD
- Model Number:VHD-JX1700
|
4K Ultra HD:4K(3840x2160)@30fps/25fps, downward compatible with 1080P, 720P, etc. |
High Efficient Teaching Traking(Optional) |
AF: Auto Focus Lens, 46°/84°/120° field of view, support EPTZ. |
Built-in Microphone |
|
WDR (wide dynamic range): Deliver easy availability for various lighting environments in the most harsh conditions. |
Low Light: CMOS sensor, 2D/3D noise reduction algorithm, SNR of 55dB. |
PoE support |
|
Sensor | 1/2.7'', CMOS, Effective Pixel: 8.51M |
Scanning Mode | Progressive |
Lens Mount | M12 |
Lens 1 | Focus: f=7.35mm, FOV: 46° |
Lens 2(Default) | Focus: f=3.5mm, FOV: 84° |
Lens 1 | Focus: f=2.8mm, FOV: 120° |
Autofocus | Support |
Minimal Illumination | 0.05 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, Indoor, Outdoor, One Push, Manual |
Digital Noise Reduction | 2D, 3D digital noise reduction |
Camera bracket | Optional |
Backlight Compensation | Support |
PoE | Support |
Local Storage | Support |
Auto Tracking Function | Teacher mode / Student mode (optional) |
|
Video Compression | H.265 / H.264 / MJEPG |
Video Stream | Main Stream, Sub Stream |
Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
Sub Stream Resolution | 1920x1080, 720x576, 720x480, 320x240 etc. |
Video Bit Rate | 128Kbps ~ 20480Kbps |
Bit Rate Type | Variable Rate, Fixed Rate |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
Audio Compression | AAC |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
|
Network Interface | 1xRJ45: 10M/100M/1000M Ethernet Interface |
1xWireless Wi-Fi (optional) |
USB Interface | 1xUSB 2.0: Type A, famale |
|
Input Voltage | DC 12V / PoE (802.3af) |
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Size | 194mm x 34mm x 42mm (without bracket) |
MTBF | 30000h |
