- Type:Video Conference System
- Simultaneous Interpretation:No
- Place of Origin:CN
- Brand Name:VHD
- Model Number:VHD-V71UV
- Product Name:12X PTZ USB and IP Output Video Teleconference Camera
- Video Output:USB 3.0 + IP
- Feature:USB Powered
- Video Format:1080p30
- Sensor:1/2.8'', CMOS
- Effective Pixels:2.07M
- Zoom:12x Optical
- Digital Zoom:16x
- Horizontal Angle of View:72.5 degree
- Warranty:1 year

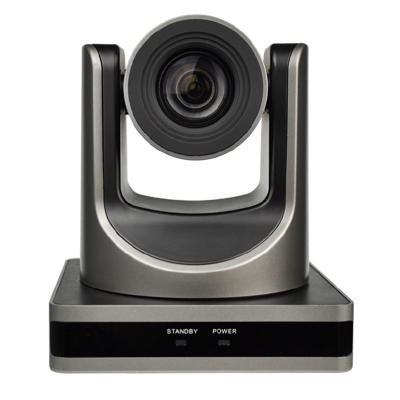

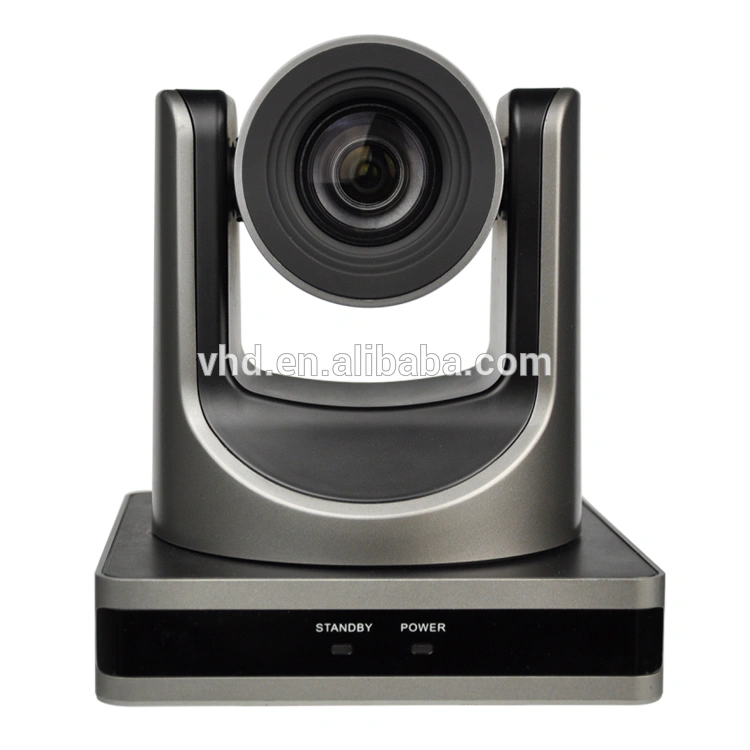

USB3.0 HD Video Conference Camera
---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.1~1.5 protocol.
---1080P Full HD
Apply 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
---Ultra-high Frame Rate
The output frame rate up to 30fps in 1080P.
---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
---Remote Control
Using RS232 all the parameters of the camera can be remote controlled by the high-speed communications.
---H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
---Dual stream
Support two stream output, reduce the host codec pressure.
---Dual power supply
Support two power supply (DC IN 5V and DC IN 12V).

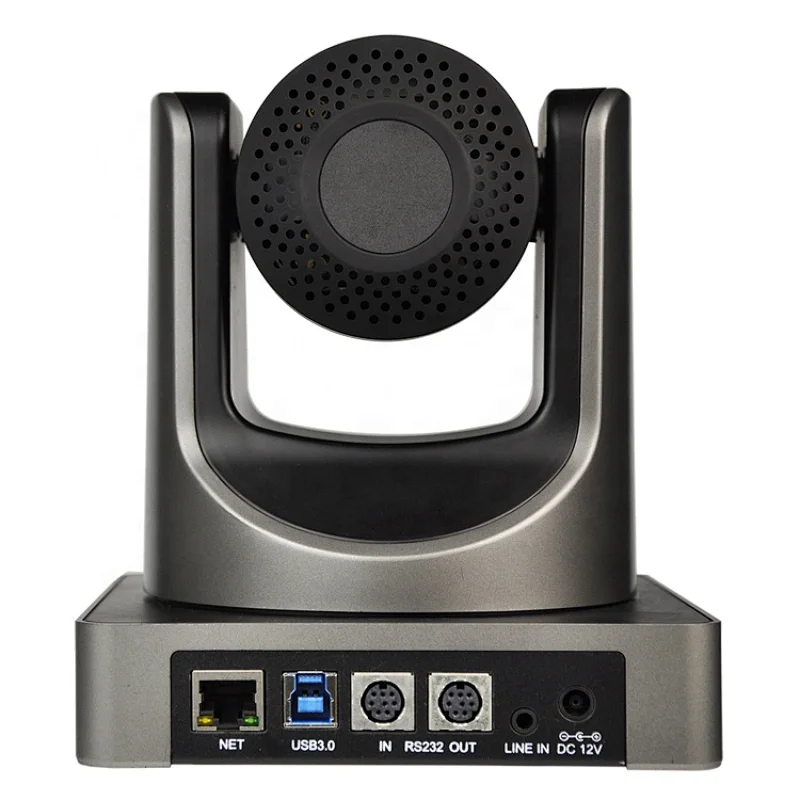

| Input/Output Interface | ||
| USB Interface | 1xUSB3.0: Type B female jack | |
| Network Interface | 1xRJ45: 10M/100M Ethernet Interface | |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V)/USB B type(DC IN 5V) | |
ValueHD Corporation
ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded 9 years, the company has been focusing on the high-definition video camera and its accessories. Its products range from high-definition video conferencing PTZ camera, high-definition camera module with zoom lens for video surveillance, high-definition network camera, high-definition network camera with intelligence analysis capabilitie, MCU,All-in-one camera, microphone and etc.
ValueHD Corporation has successfully developed a variety of camera products. The technology and maturity of the product are among the leading group in this field. The company’s R & D model has gradually developed from integration at the module level to integration at the chip level. The latest types support 1080P60, WDR, and have high S/N ratio. The successful R&D works has proved that the company has mastered core techniques required for developing high-definition cameras, such as the ISP algorithm, video codec algorithm. Like many large company in the industry,we have also paid more attention on the reliability of hardware and software.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
The company welcomes customers to purchase products and services, as well as all forms of technology and product collaboration!
1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
