- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Model Number:VHD-V71U
- Brand Name:VHD
- Type:Video Conference System
- Function:Video Conference
- Product Name:12X USB 1080p Video Camera
- Video Format:1080p60,1080p50, 1080i/60,1080i50,1080p30, etc.
- Sensor:1/2.7", CMOS, Effective Pixel: 2.07M
- Scanning Mode:Progressive
- Lens:12X, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
- Digital Zoom:16x
- Input/Output Interface:USB3.0; RS232; RS485
- Input Voltage:DC 12V
- Size:128.5mmx 118mmx 156.2mm
- Net Weight:0.91kg

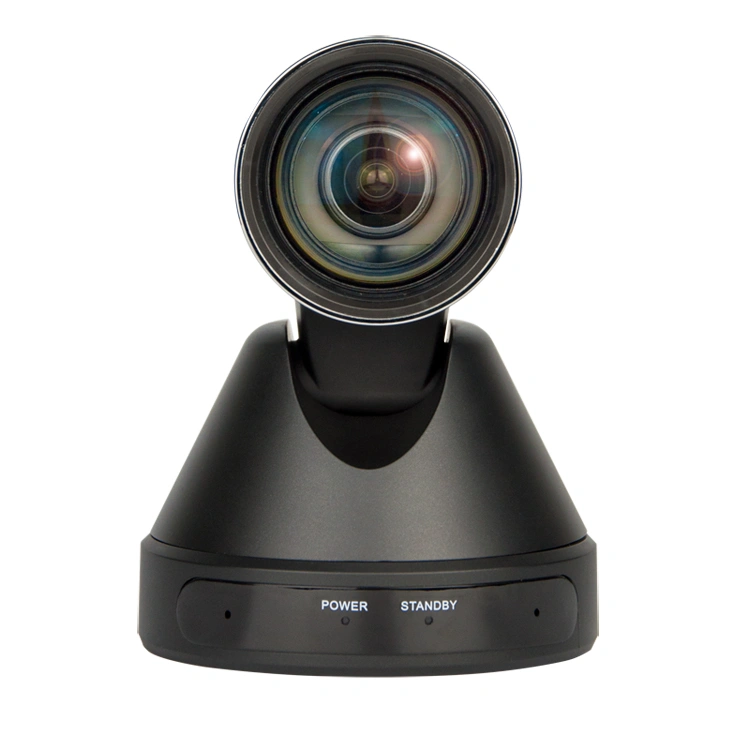

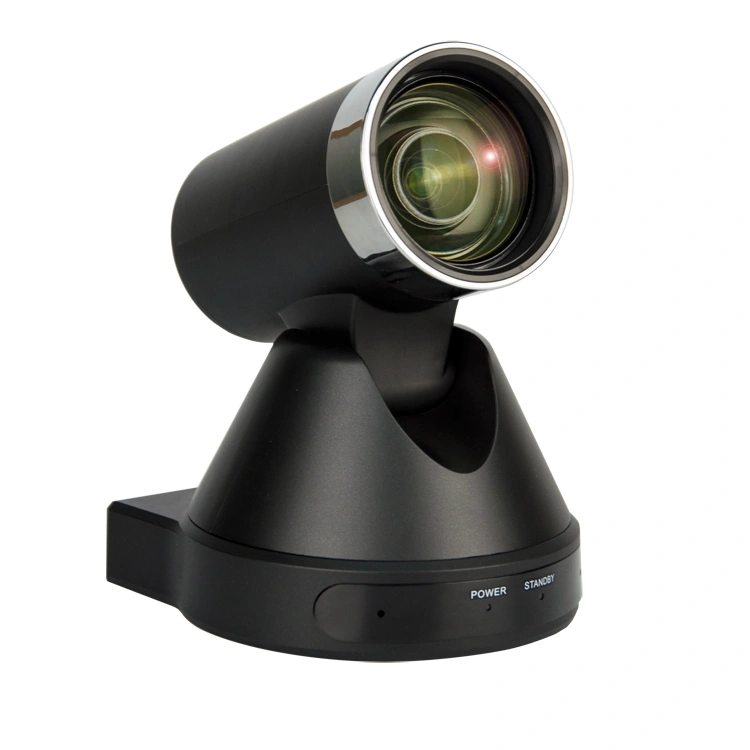

12X USB 1080p Video Camera
Main Features
---Completely New Look
Designed with worm gear transmission, completely new look, mini size, two colors for choosing from.
---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC protocol.
---Built-in Micphone (Optional)
Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.
---1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
---Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
---Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
Technical Parameter
| Product Name | 12X USB 1080p Video Camera |
| Camera | |
| Video System | HD: 1080p/60(Optional), 1080p/50(Optional), 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 72.5° ~ 6.9° |
| Vertical Angle of View | 44.8° ~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -25° ~ +25° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 0.7° ~ 28°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| USB Features | |
| Operate System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux |
| Color System / Compression | YUV 4:2:2 / H.264 / MJPEG |
| Video Format | USB3.0: 1080p/60(Optional), 1080p/50(Optional), 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 |
| Audio on USB | Support |
| USB Video Communication Protocol | UVC 1.0 ~ UVC 1.5 |
| UVC PTZ | Support |
| Input/Output Interface | |

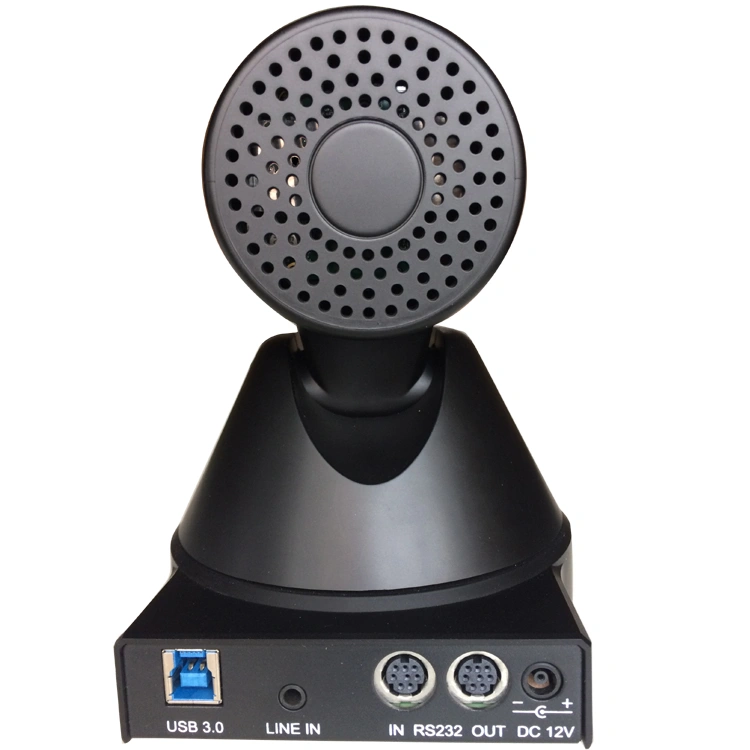

| USB Interface | 1xUSB3.0: Type B female jack |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS485: Share with RS232 Out, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| MTBF | >30000h |
| Size | 128.5x118x156.2mm |
| Net Weight | 0.91K g |
