Product Features

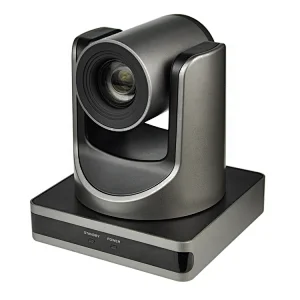

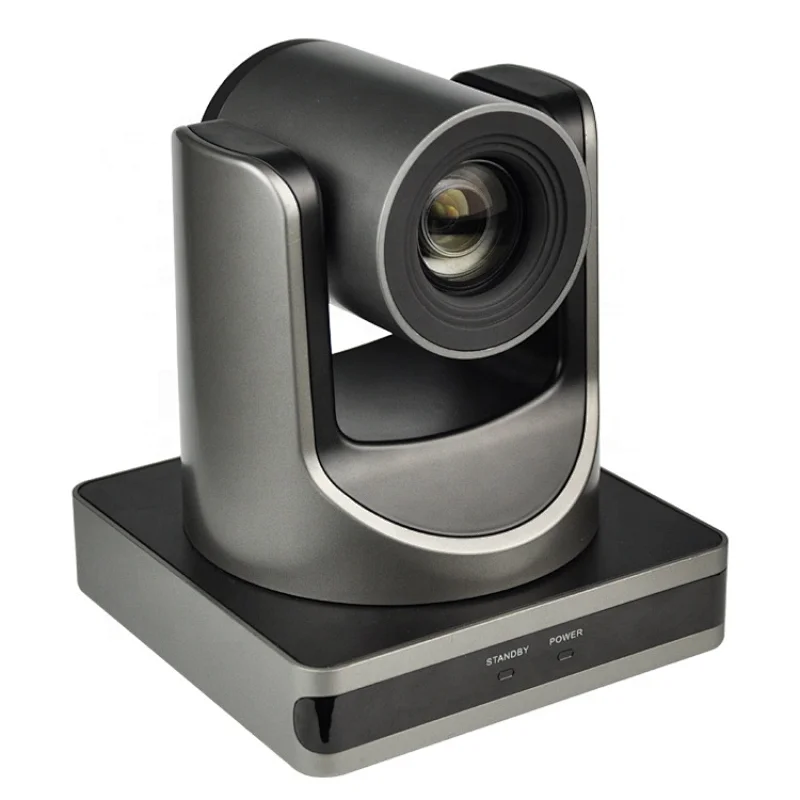

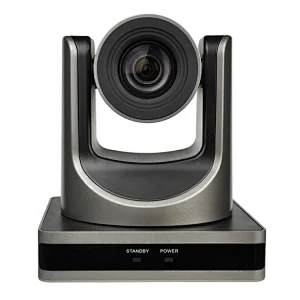

USB3.0 HD Video Conference Camera
---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.1~1.5 protocol.
---1080P Full HD
Apply 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
---Ultra-high Frame Rate
The output frame rate up to 30fps in 1080P.
---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
---Remote Control
Using RS232 all the parameters of the camera can be remote controlled by the high-speed communications.
---H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
---Dual stream
Support two stream output, reduce the host codec pressure.
---Dual power supply
Support two power supply (DC IN 5V and DC IN 12V).
| Input/Output Interface |
| USB Interface | 1xUSB3.0: Type B female jack |
| Network Interface | 1xRJ45: 10M/100M Ethernet Interface |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack | JEITA type (DC IN 12V)/USB B type(DC IN 5V) |
