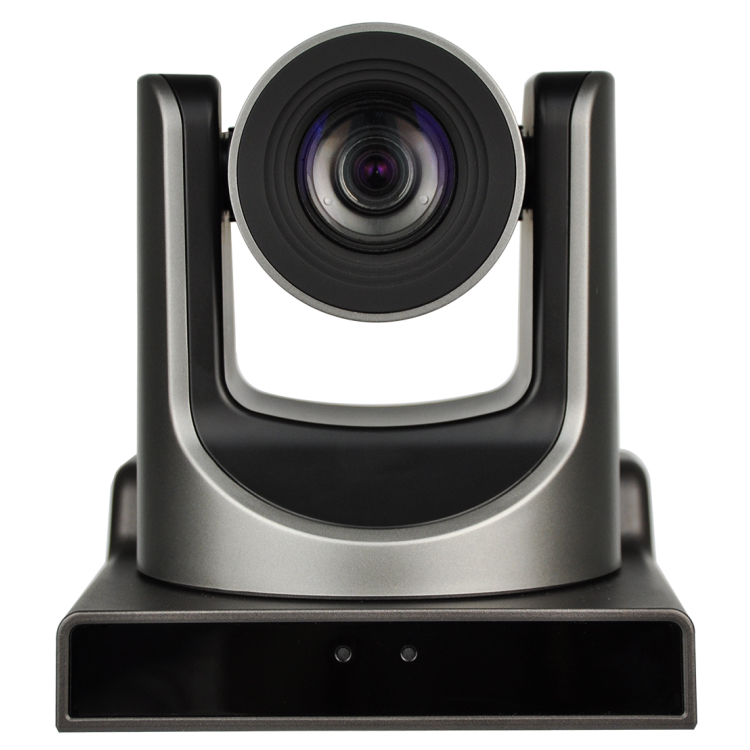

12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming
12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming

12X Optical Zoom VHD Full HD 60fps NDI PTZ HD Camera For Live Streaming

Model NO.:
VHD-V61CL-N
Price:
USD 700.00-800.00 / set
Minimum order quantity:
1 set
Supply Ability:
500.0 set / Day
Country of Origin:
Shenzhen
Quantity:
  • Product Name:12X Optical Zoom VHD Full HD 60fps NDI PTZ Camera
  • Video Format:1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25 etc.
  • Sensor:1/2.8'', CMOS, Effective Pixel: 2.07M
  • Scanning Mode:Progressive
  • Lens:12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
  • Video S/N:≥55dB
  • Input/Output Interface:HDMI; SDI; RJ45; RS232; RS485
  • Input Voltage:DC 12V
  • Size:146mm x 152mm x 165mm
  • Net Weight:1.35kg
  • Type:Network Conference System
  • Type:Video Conference System
  • Function:Video Conference
  • Simultaneous Interpretation:No
  • Place of Origin:CN;GUA
  • Brand Name:VHD
  • Model Number:VHD-V61CL-N
Products Description

1080P Full HD

1/2.8 inch sensor, 2.07 million effective pixels, maximum 1920 x 1080 resolution.

Multiple Interfaces

HDMI, SDI, Network can output at the same time

Local Storage

Support U disk local storage, local recording directly without NVR.

Supports NDI HX, HX2

The camera can connect directly to a NDI® network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

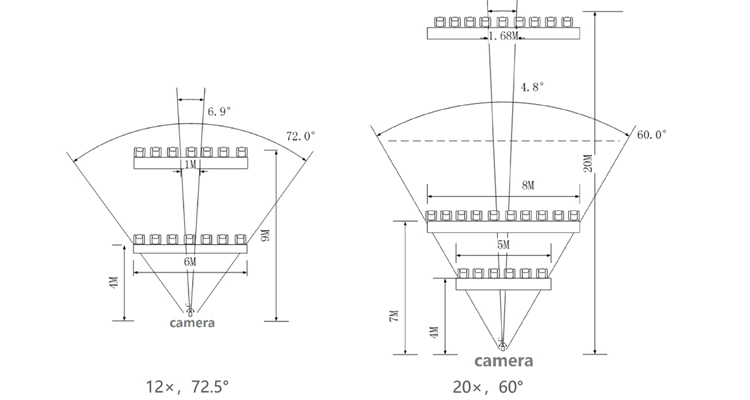

12x Optical + 16x Digital Zoom

Use high quality super telephoto lens, support 20x optical zoom, and 16x digital zoom(optional).

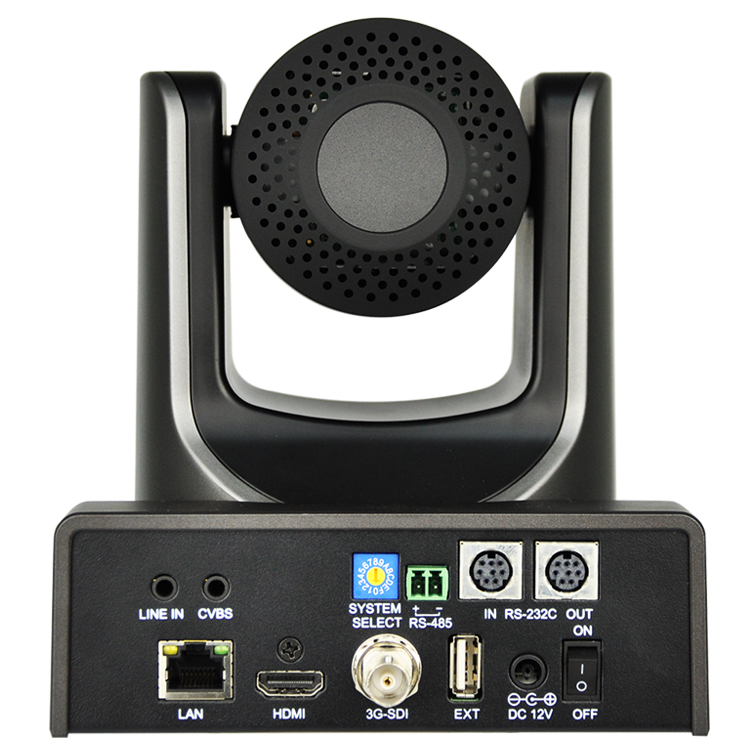

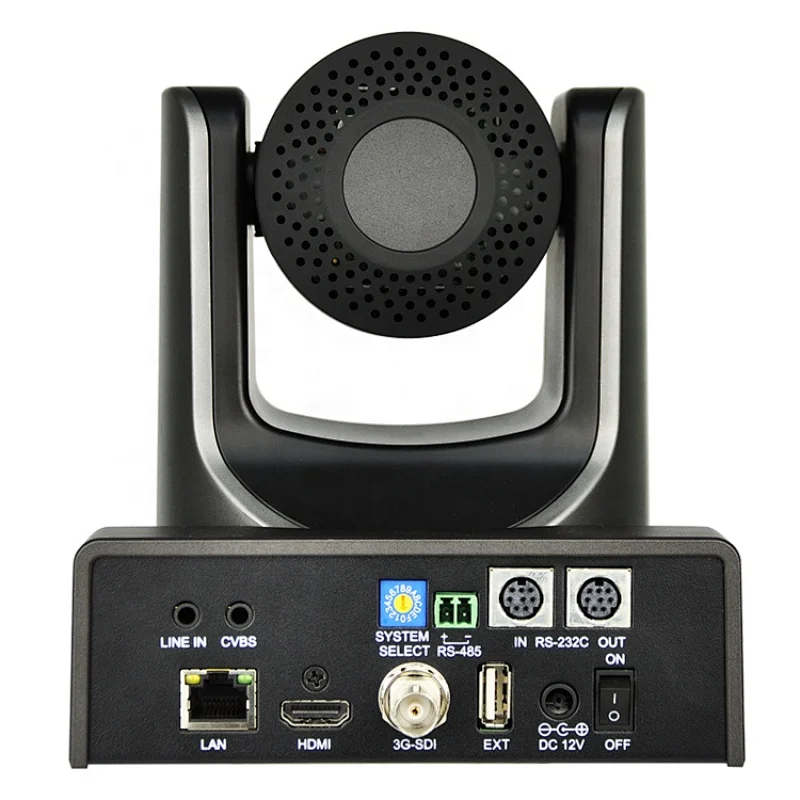

Input/Output Interface
HD Output
1xHDMI: Version 1.3
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output
1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface
1xRJ45: 10M/100M Ethernet Interface
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
USB
1xUSB2.0: Type A female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)

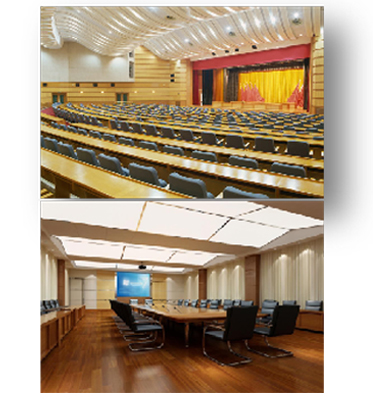

Applications

Big Meeting Rooms

MiddleMeeting Rooms
