Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function
Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function

Professional 20x Optical Zoom 4k 60fps IP Camera 3G SDI PTZ Camera with Auto Tracking Function

Model NO.:
VHD-VX60CL
Price:
USD 800.00-900.00 / set
Minimum order quantity:
1 set
Supply Ability:
500.0 set / Day
Country of Origin:
Shenzhen
Quantity:
  • Product Name:20x Optical Zoom 4K 60FPS 3G SDI PTZ Camera
  • Video Format:4K@60/50/30/25/59.94/29.97fps, 1080P@60/50 etc.
  • Sensor:1/1.8", CMOS, Max Effective Pixel: 8.42M
  • Scanning Mode:Progressive
  • Lens:20x, f = 6.7mm ~ 125mm, F1.58 ~ F3.95
  • Video S/N:≥55dB
  • Input/Output Interface:HDMI + 3G-SDI + USB3.0 + RJ45, RS232 IN/OUT, RS485
  • Input Voltage:DC 12V
  • Size:169mm x 142mm x 164mm
  • Net Weight:1.35kg
  • Type:Video Conference System
  • Function:Video Conference
  • Simultaneous Interpretation:No
  • Place of Origin:CN;GUA
  • Brand Name:VHD
  • Model Number:VHD-VX60CL
Products Description

4K Ultra-high resolution

Using 1/1.8-inch UHD CMOS sensor with a maximum of 8.42 megapixels, high quality images in 4K (3840x2160) can be achieved.

Multiple Interfaces

HDMI + SDI + IP + USB four-way simultaneous output video

20x optical zoom

High-quality & ultra-high resolution 4K lens, 20x optical zoom, horizontal field of view over 60 °.

Intelligent auto tracking

Support AI tracking for the participants.

Low power sleep function

Supports low-power sleep / wake-up function, and consumes less than 400mW in sleep mode.

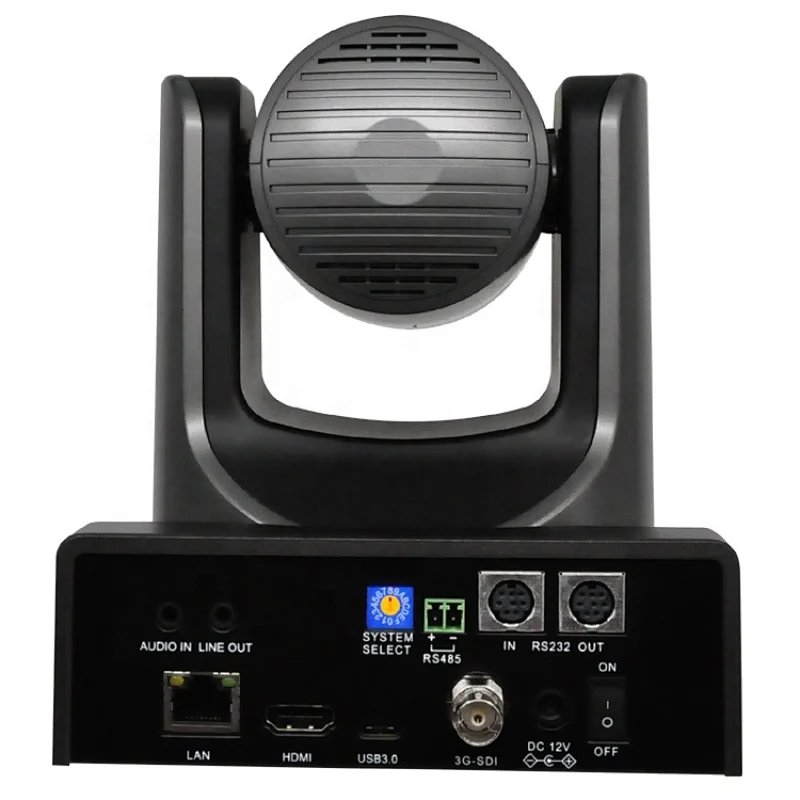

Input/Output Interface
HD Output
1xHDMI: Version 2.0
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface
1xRJ45: 10M/100M Ethernet Interface, POE supported
Audio Interface
1-ch: 3.5mm Audio Interface, Line In/Mic in
USB
1xUSB3.0: Type C, Up to 4K@60fps compressed video and 1080P original video
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)
Applications
