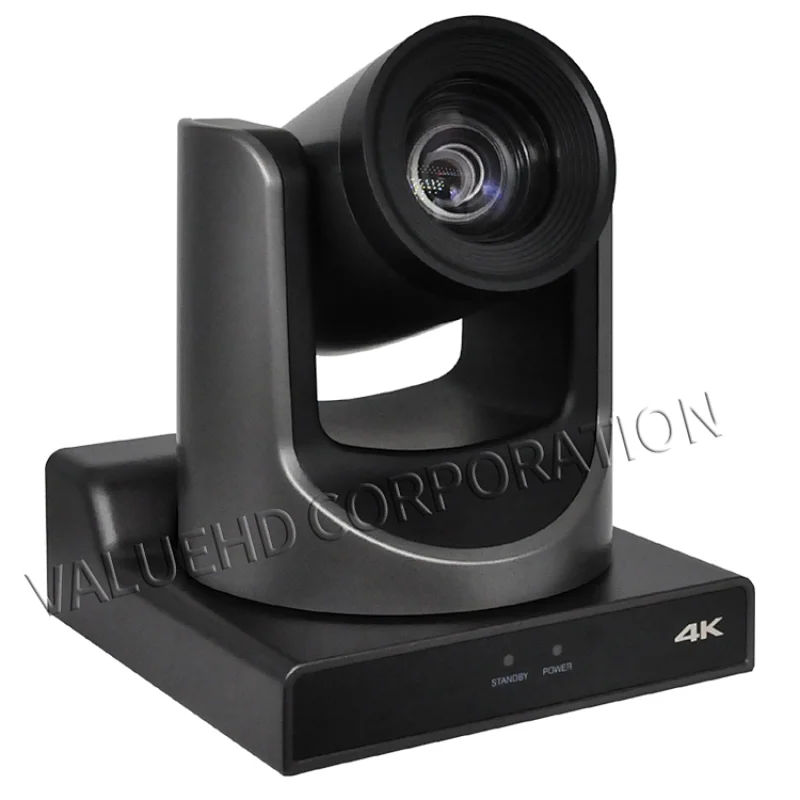

- Product Name:NDI | HX2 4K Video Conference Camera 20x
- Video Format:4K@60/50/30/25/59.94/29.97fps, 1080P@60/50 etc.
- Sensor:1/1.8", CMOS, Max Effective Pixel: 8.42M
- Scanning Mode:Progressive
- Lens:20x, f = 6.7mm ~ 125mm, F1.58 ~ F3.95
- Video S/N:≥55dB
- Input/Output Interface:HDMI + 3G-SDI + USB3.0 + RJ45, RS232 IN/OUT, RS485
- Input Voltage:DC 12V
- Size:169mm x 142mm x 164mm
- Net Weight:1.35kg
- Type:Video Conference System
- Function:Video Conference
- Simultaneous Interpretation:No
- Place of Origin:CN;GUA
- Brand Name:VHD
- Model Number:VHD-VX60CL-N
Products Description
4K Ultra-high resolution
Using 1/1.8-inch UHD CMOS sensor with a maximum of 8.42 megapixels, high quality images in 4K (3840x2160) can be achieved.
Multiple Interfaces
HDMI + SDI + IP + USB four-way simultaneous output video
20x optical zoom
High-quality & ultra-high resolution 4K lens, 20x optical zoom, horizontal field of view over 60 °.
Intelligent auto tracking
Support AI tracking for the participants.
Low power sleep function
Supports low-power sleep / wake-up function, and consumes less than 400mW in sleep mode.

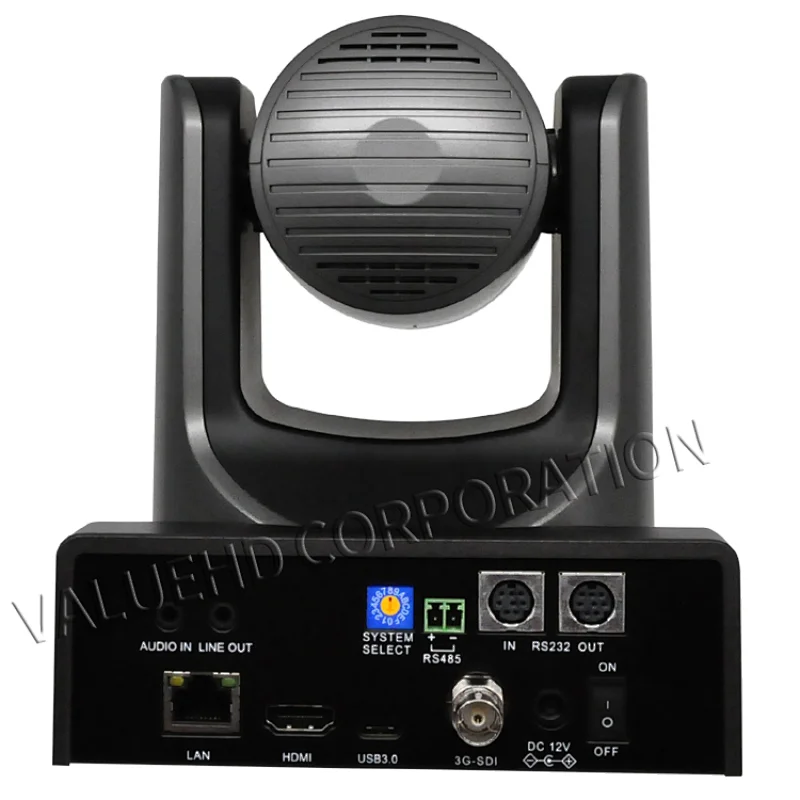

Input/Output Interface | |||
HD Output | 1xHDMI: Version 2.0 | ||
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |||
Network Interface | 1xRJ45: 10M/100M Ethernet Interface, POE supported | ||
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In/Mic in | ||
USB | 1xUSB3.0: Type C, Up to 4K@60fps compressed video and 1080P original video | ||
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | ||
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |||
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |||
Power Jack | JEITA type (DC IN 12V) | ||
