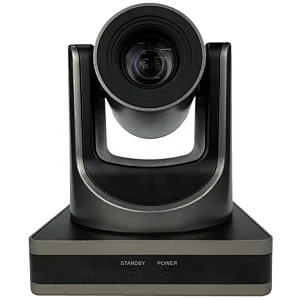

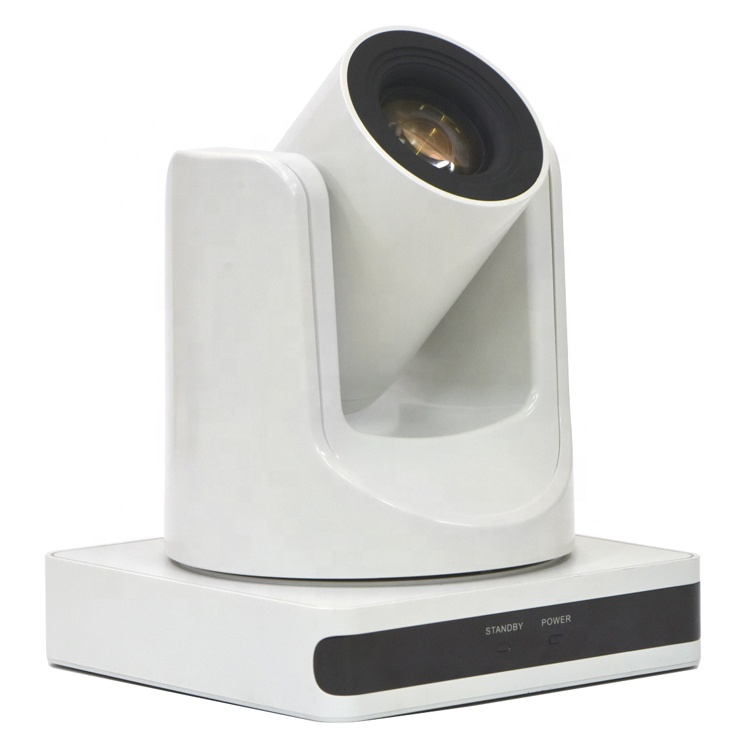

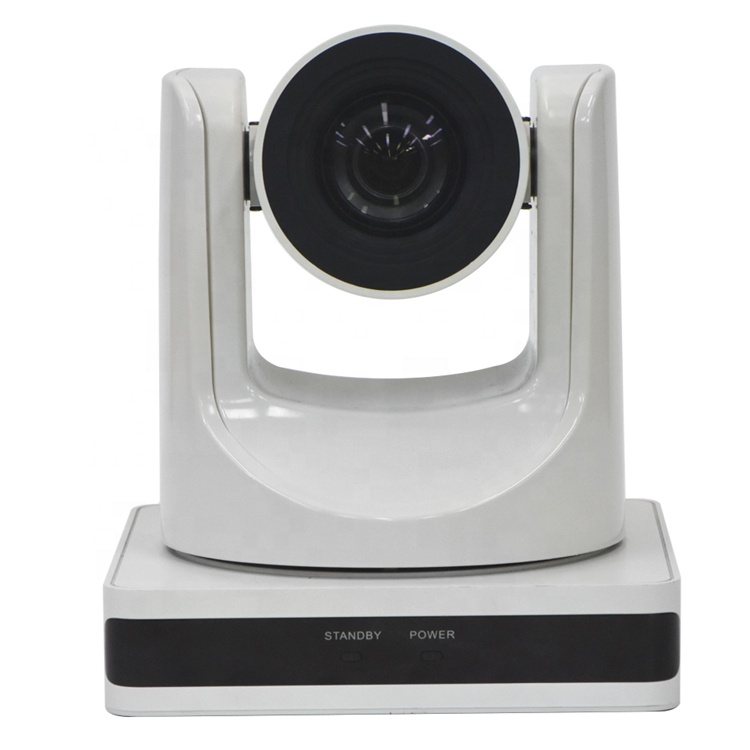

Product Name:IR CUT High Quality Night Vision Camera
Video Output:USB 3.0 + IP
Power supply:DC IN 5V and DC IN 12V
Type:Network Conference System
Type:Video Conference System
Place of Origin:CN
With built in IR CUT, can automatically change the daytime vision and night vision mode.
Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.1~1.5 protocol.
1080P Full HD
Apply Panasonic's 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
Dual power supply
Support two power supply (DC IN 5V and DC IN 12V)

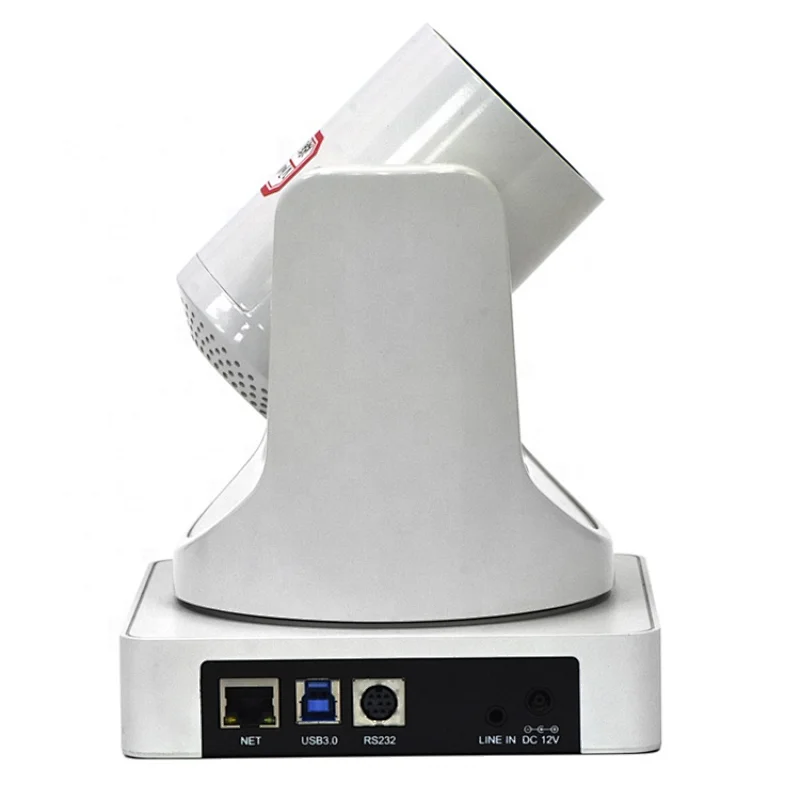

1xUSB3.0: Type B female jack
1xRJ45: 10M/100M Ethernet Interface
1-ch: 3.5mm Audio Interface, Line In
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
JEITA type (DC IN 12V)/USB B type（DC IN 5V）
Main Stream, Sub Stream

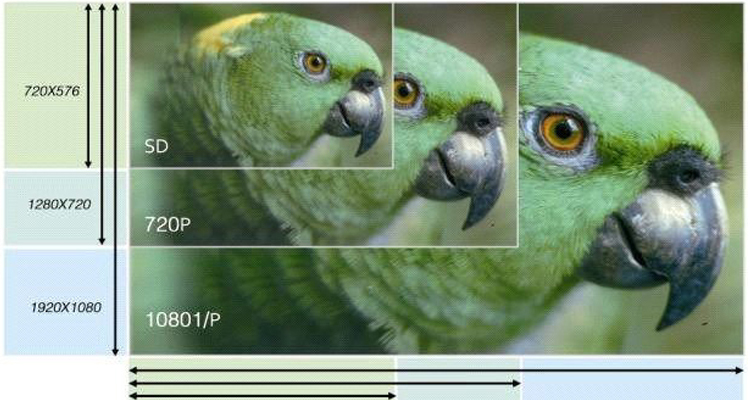

Main Stream Resolution
1920x1080, 1280x720, 1024x576
Sub Stream Resolution
720x576, 720x480, 320x240
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression
YUV 4:2:2 / H.264 / MJPEG
YUY2 (BULK): max to 1080P@30fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@30fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps
Audio on USB
USB Video Communication Protocol
Get to Know About VHD

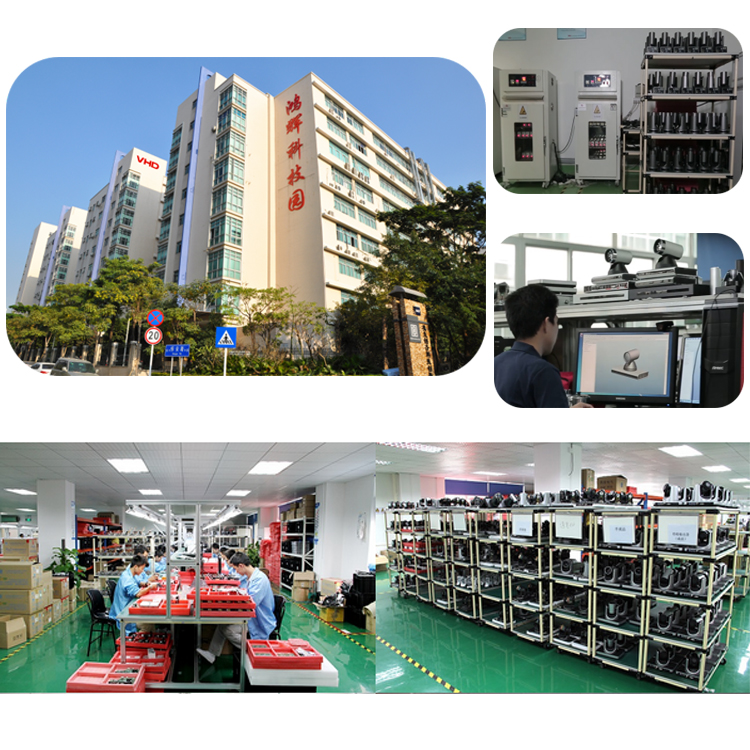

ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded in 2008, VHD has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.
VHD's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
We welcome customers from all over the world! OEM/ODM available!
