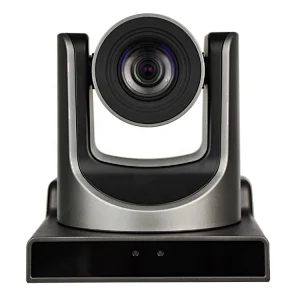

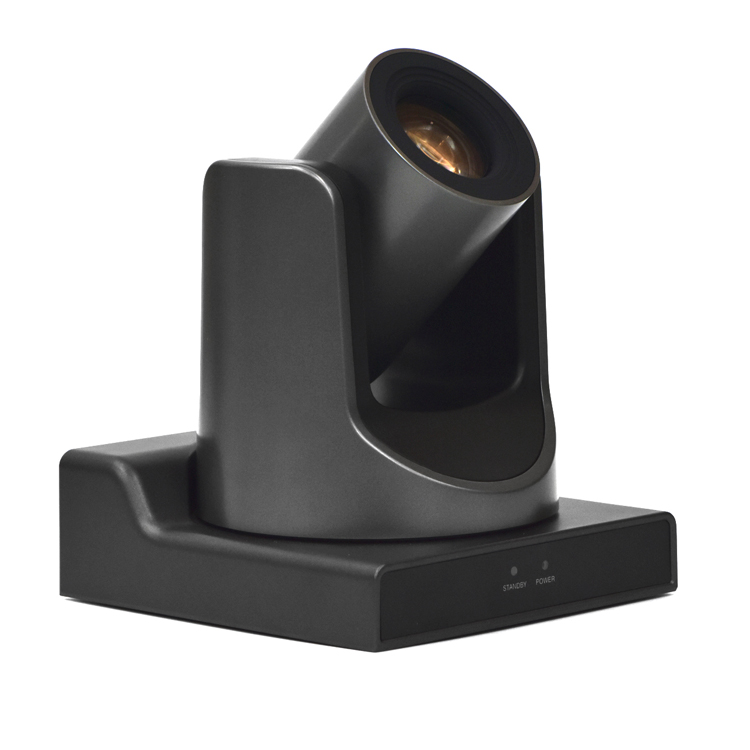

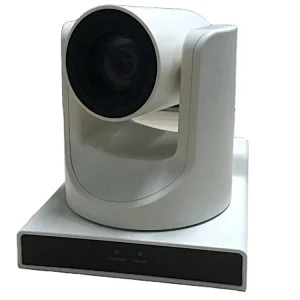

HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference
HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference

HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera for Live Streaming / Video Conference

Model NO.
VHD-V63CL-N
Price:
USD 800.00-900.00 / set
Minimum order quantity:
1 set
Supply Ability:
500.0 set / Day
Country of Origin:
Shenzhen
Quantity:
  • Product Name:HDMI 3G SDI IP Output NDI 30X Zoom NDI PTZ Camera
  • Video Format:1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25 etc.
  • Sensor:1/2.8'', CMOS, Effective Pixel: 2.07M
  • Scanning Mode:Progressive
  • Lens:30x, f4.42mm ~ 132.6 mm, F1.8 ~ F2.8
  • Video S/N:≥55dB
  • Input/Output Interface:HDMI; SDI; RJ45; RS232; RS485
  • Input Voltage:DC 12V
  • Size:146mm x 152mm x 165mm
  • Net Weight:1.35kg
  • Type:Network Conference System
  • Type:Video Conference System
  • Function:Video Conference
  • Simultaneous Interpretation:No
  • Place of Origin:CN;GUA
  • Brand Name:VHD
  • Model Number:VHD-V63CL-N
Products Description

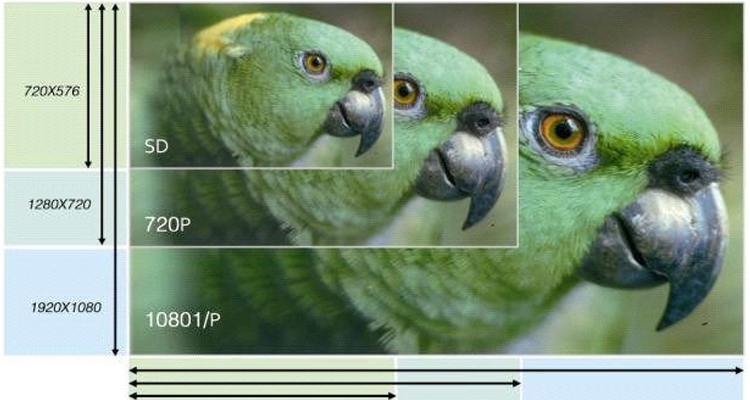

1080P Full HD

1/2.8 inch sensor, 2.07 million effective pixels, maximum 1920 x 1080 resolution.

Multiple Interfaces

HDMI, SDI, Network can output at the same time

Local Storage

Support U disk local storage, local recording directly without NVR.

Supports NDI HX, HX2

The camera can connect directly to a NDI® network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

20x Optical + 16x Digital Zoom

Use high quality super telephoto lens, support 20x optical zoom, and 16x digital zoom(optional).

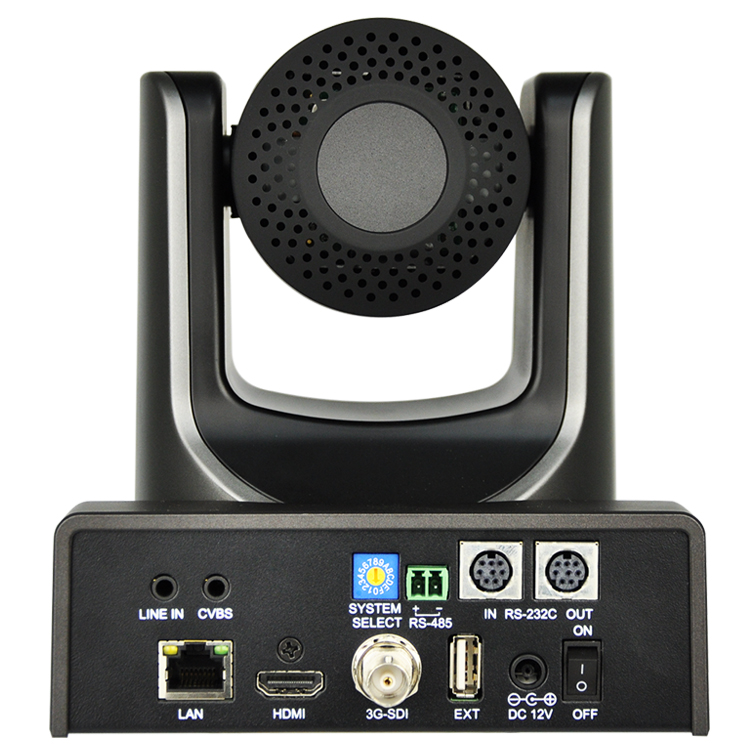

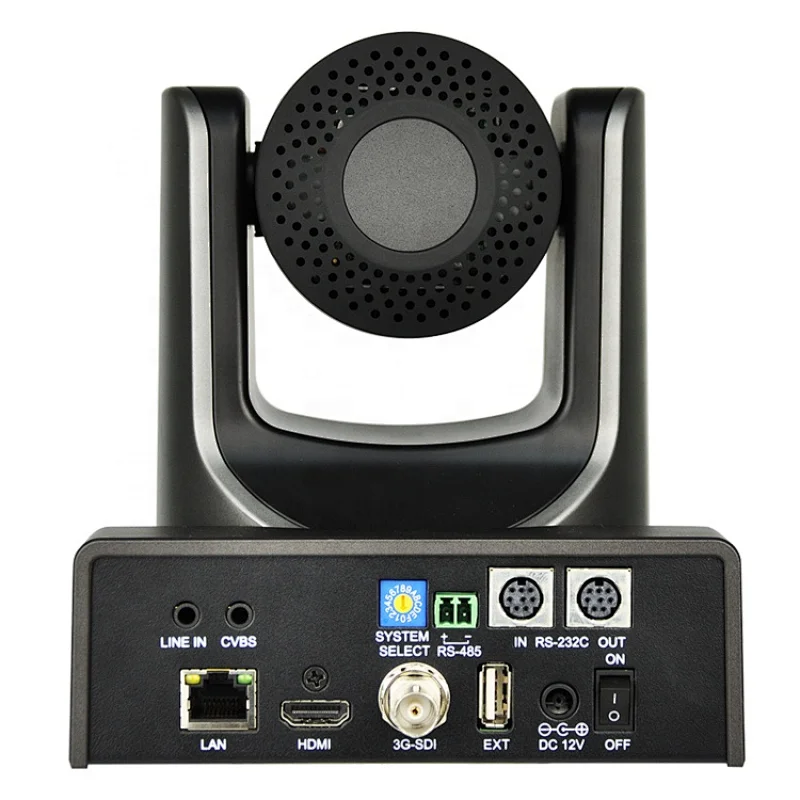

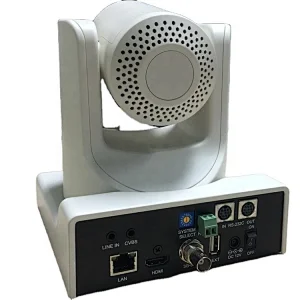

Input/Output Interface
HD Output
1xHDMI: Version 1.3
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output
1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface
1xRJ45: 10M/100M Ethernet Interface
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
USB
1xUSB2.0: Type A female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)

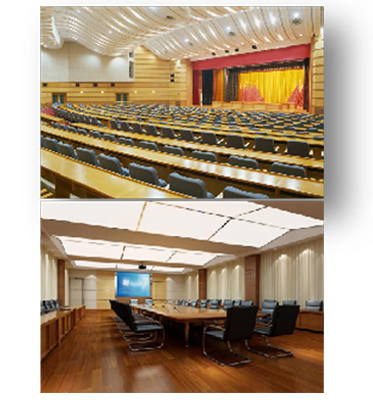

Applications

Big Meeting Rooms

MiddleMeeting Rooms
