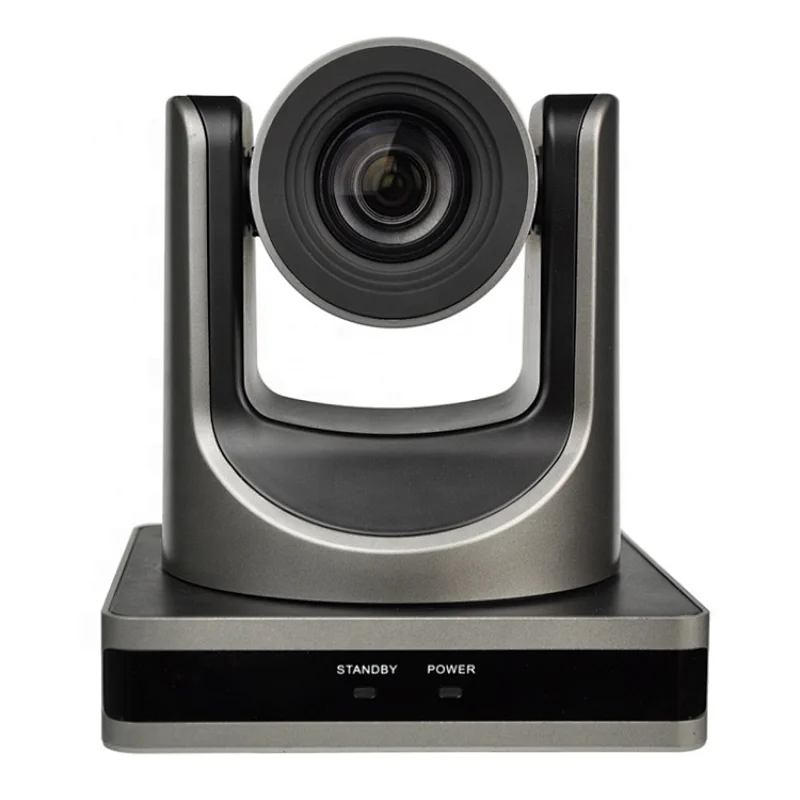

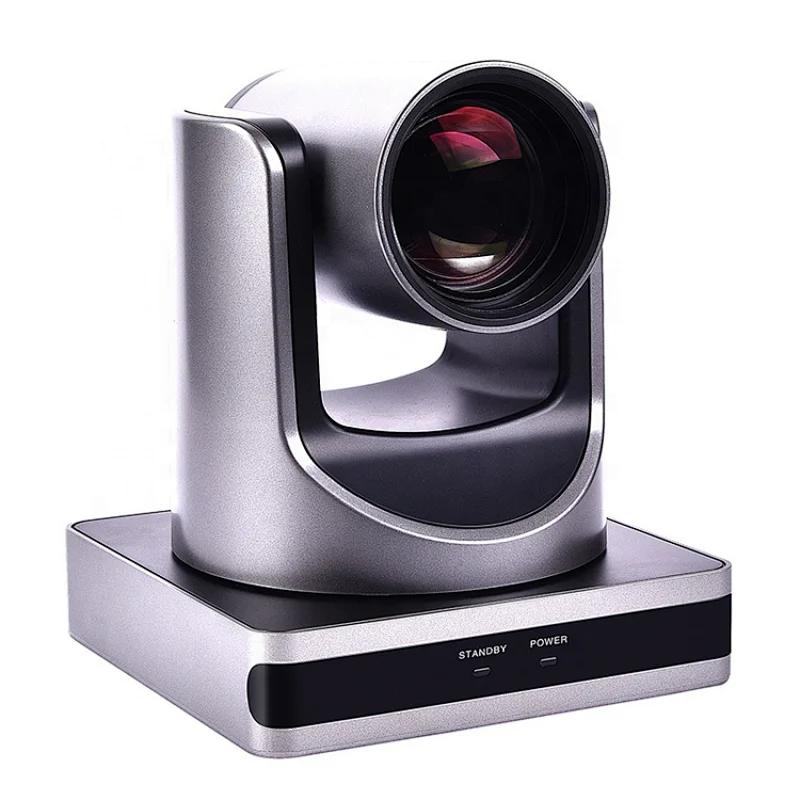

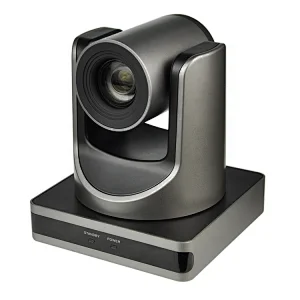

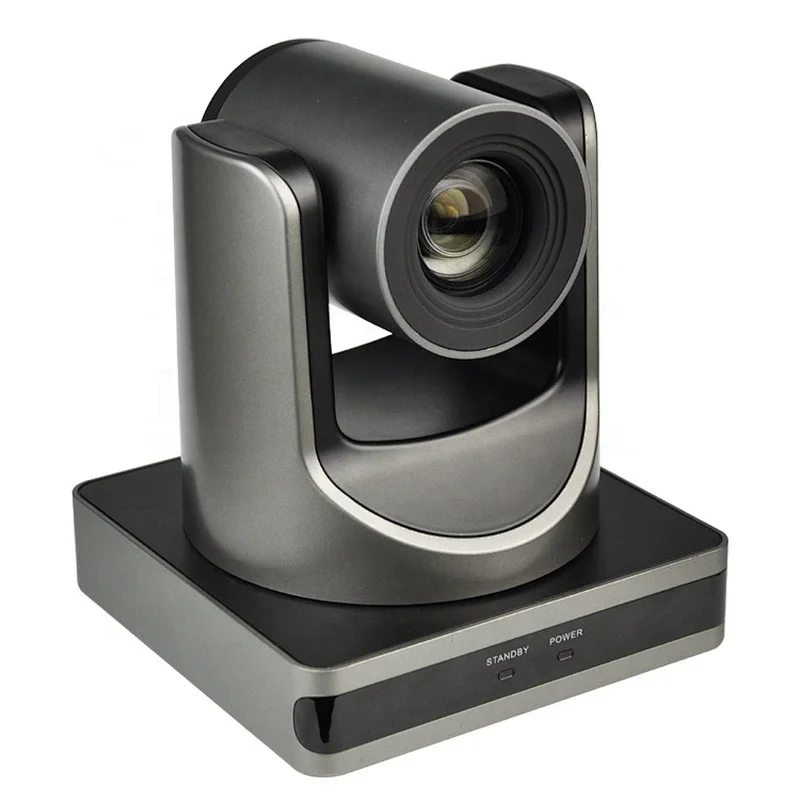

Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0
Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0

Full HD Video Conference System 12x Optical Zoom 4k Camera USB 3.0

Model NO.
VHD-V71UV
Minimum order quantity:
1
Quantity:
  • Product Name: Full HD Video Conference System 12x Optical Zoom USB3.0 Camera
  • Video Output: USB 3.0 + IP
  • Feature: USB Powered
  • Video Format: 1080p30
  • Sensor: 1/2.8'', CMOS
  • Effective Pixels: 2.07M
  • Zoom: 12x Optical
  • Digital Zoom: 16x
  • Horizontal Angle of View: 72.5 degree
  • Warranty: 1 year
  • Type: Network Conference System
  • Type: Video Conference System
  • Simultaneous Interpretation: No
  • Model Number: VHD-V71UV
  • Place of Origin: CN
  • Brand Name: VHD
Products Description

Full Function USB Interface

Compatible with USB3.0 and USB2.0, support audio, compressed video output, UVC v1.1~1.5 protocol.

72.5° Wide-angle Lens

Support 12x optical zoom, and 16x digital zoom

Dual Power Supply

Support two power supply (DC IN 5V and DC IN 12V),

1080P Full HD

1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, maximum 1920 x 1080 high resolution.

Dual stream

Support two stream output, reduce the host codec pressure.

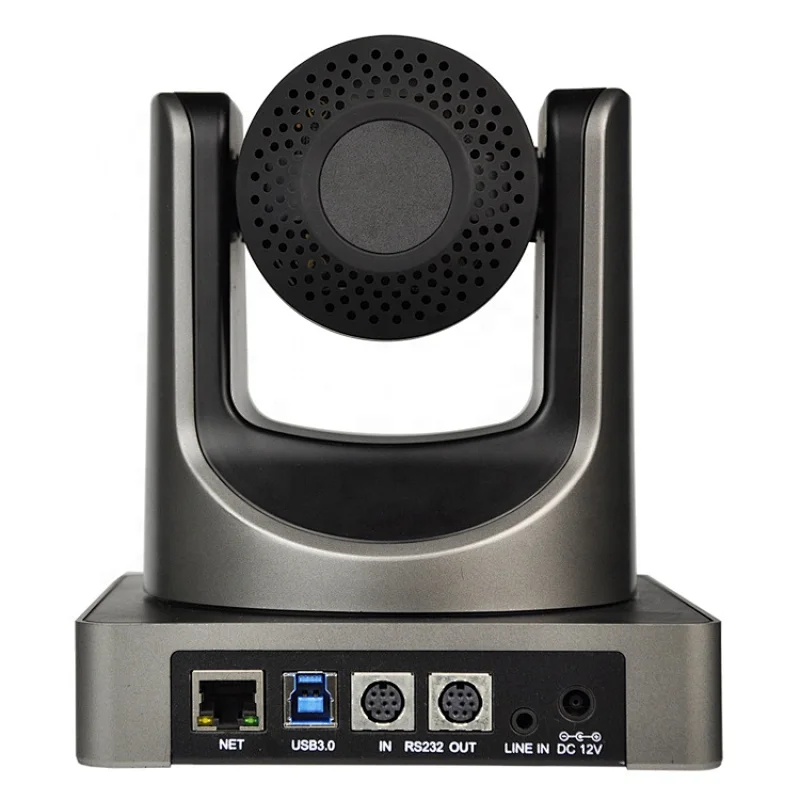

Input/Output Interface
USB Interface
1xUSB3.0: Type B female jack
Network Interface
1xRJ45: 10M/100M Ethernet Interface
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)/USB B type(DC IN 5V)
Certifications
