Close-up Camera | | |
Video System | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 | |
Sensor | 1/2.8'', CMOS, Effective Pixel: 2.07M | |
Scanning Mode | Progressive | |
Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | |
Digital Zoom | 16x | |
Panorama Camera | | |
Video System | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 | |
Sensor | 1/2.8'', CMOS, Effective Pixel: 2.07M | |
Scanning Mode | Progressive | |
Lens Mount | M12 Mount | |
Teacher Panorama Lens | f=6mm, F1.8, AoV about 60°(default, changeable) | |
Student Panorama Lens | f=3.24mm, F1.8, AoV about 84° (default, changeable) | |

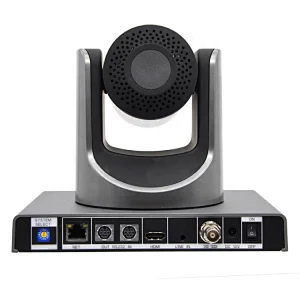

Input/Output Interface | | |
HD Output | 1xHDMI: Version 1.3 | |
| 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |
Network Interface | 1xRJ45: 10M/100M Ethernet Interface | |
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol | |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m | |
Power Jack | JEITA type (DC IN 12V) | |
