4k Conference Camera Auto Tracking PTZ Camera HDMI USB SDI IP for Distance Learning

Video meetings have become a staple in every household, to meet friends and colleagues and to support distance learning. The 4k Conference Camera from ValueHD delivers the best technical equipment available to ensure smooth and productive video meetings.
4k Conference Camera streams high quality image at 4K (3840x2160), allows a 71 degree field of view, and 12x optical zoom. Even under poor light conditions, the camera will adjust automatically to stream vivid video quality thanks to its automatic low-light correction technology. Furthermore, the camera is designed with image recognition and tracking technology to achieve a smooth and natural tracking effect. This camera captures both panorama and close-up HD video at the same time, a very convenient feature for every occasion.
The built-in microphone is highly sensitive and equally picks up sounds from all directions. 4k Conference Camera’s noise reduction algorithm blocks out background noises, ensuring crystal clear conversations during video meetings.

• Type:Tracking camera
• Model Number:VHD - VX800I
• Maximum resoution:4K@30
• Feature:Auto tracking
• Optical Zoom:12x
• POE:Supported
• Scanning Mode:Progressive
• Function:Classroom tracking
• Simultaneous Interpretation:No
• Place of Origin:China
• Type:Network Conference System
• Type:Video Conference System
• Function:Video Conference
• Simultaneous Interpretation:No
• Place of Origin:Shenzhen
• Brand Name:VHD
• Model Number:VHD- VX800I

Products Description

4K Ultra-high resolution

Using 1/2.5-inch UHD CMOS sensor with a maximum of 8.51 megapixels, high quality images in 4K (3840x2160) can be achieved. And downward compatible with 1080P, 720P and other resolutions.

All-in-One Design

All-in-One design, can output panorama and close up HD video at the same time.

Intelligent teaching tracking

Built-in leading image recognition and tracking algorithm, without any auxiliary positioning camera or tracking host to achieve smooth and natural tracking effect.

71° Wide-angle Lens + 12x optical Zoom

Exclusive customized high-quality true 8 million ultra-high resolution 4K ultra wide-angle lens, 12x optical zoom, horizontal field of view up to 71°.

Rich and complete interface

Support HDMI2.0 HD output, and also equipped with 3G-SDI interface, the effective transmission distance up to 150 meters (1080p30). HDMI, 3G-SDI, USB3.0, LAN four channels can simultaneously output high-definition digital signals.

Close-up Camera
Video System	4K@30/25/29.97, 1080p/60/50/30/59.94/29.97, 1080i/60/50/59.94, 720p/60/59.94
Sensor	1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode	Progressive
Lens	12x, f4.4mm ~ 52.8mm, F1.8 ~ F2.6
Digital Zoom	16x
Panorama Camera
Video System	4K@30/25/29.97, 1080p/60/50/30/59.94/29.97, 1080i/60/50/59.94, 720p/60/59.94
Sensor	1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode	Progressive
Lens Mount	M12 Mount
Teacher Panorama Lens	f=8.0mm, AoV about 42°(default, changeable)
Student Panorama Lens	f=3.24mm, AoV about 84° (default, changeable)

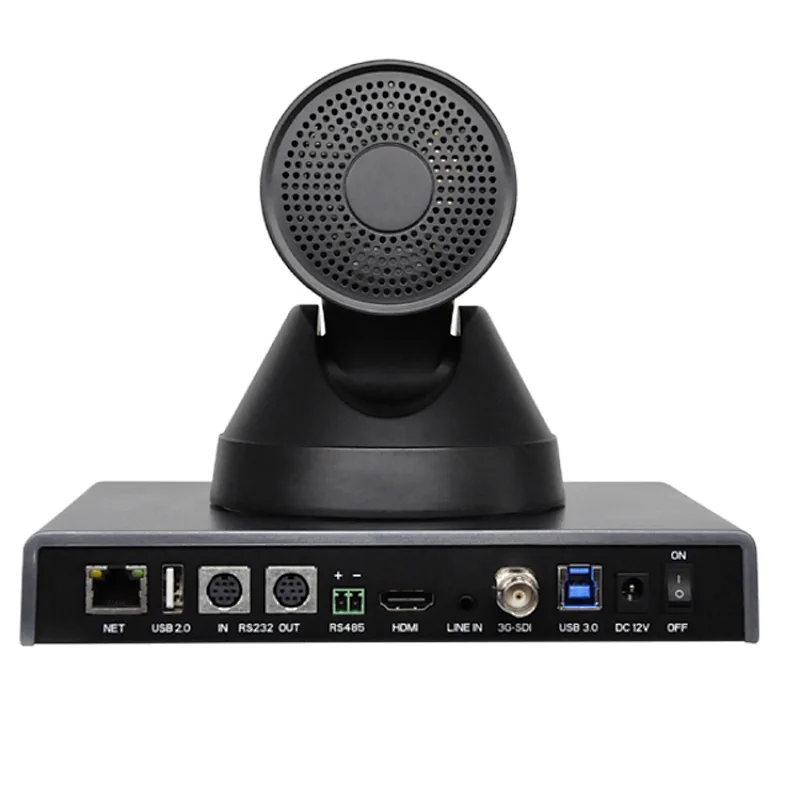

Input/Output Interface
HD Output	1xHDMI: Version 2.0
		1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface	1xRJ45: 10M/100M/1000M Ethernet Interface, POE supported
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB Interface	1xUSB3.0, Type-B 1xUSB2.0, Type-A
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol
		1xRS232 Out: 8pin Min DIN, Max Distance: 30m
		1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	DC-005/Φ2.0 type (DC IN 12V)
