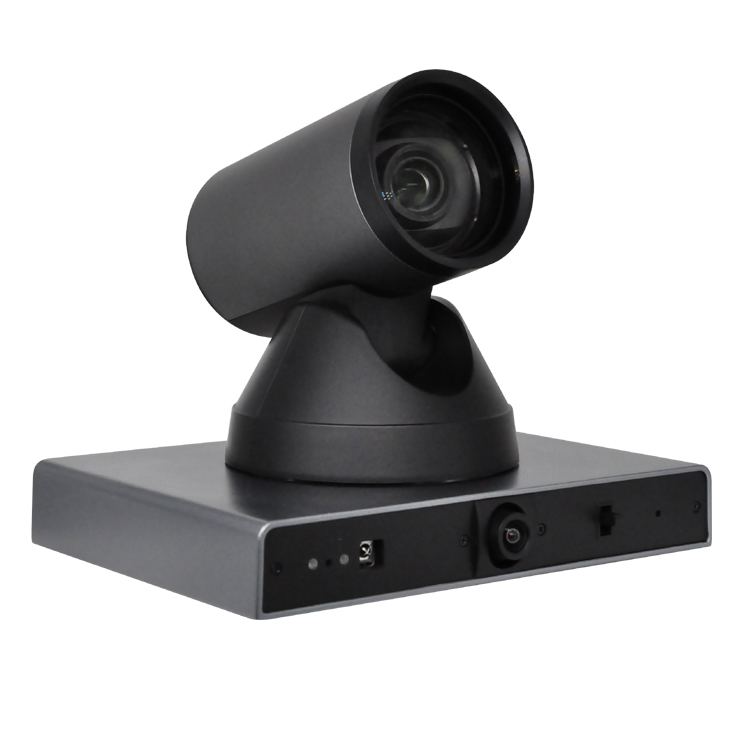

4K Auto Tracking Camera with USB HDMI SDI Output

4K Auto Tracking Camera with USB HDMI SDI Output

Model NO.: VHD- VX800I
Minimum order quantity:: 1 piece
Supply Ability:: 500.0 piece / Day
Country of Origin:: Shenzhen, Guangzhou

Quantity:

Product Description

Type:Tracking camera
Model Number:VHD - VX800I
Maximum resoution:4K@30
Feature:Auto tracking
Optical Zoom:12x
POE:Supported
Scanning Mode:Progressive
Function:Classroom tracking
Simultaneous Interpretation:No
Place of Origin:China
Type:Network Conference System
Type:Video Conference System
Function:Video Conference
Simultaneous Interpretation:No
Place of Origin:Shenzhen
Brand Name:VHD
Model Number:VHD- VX800I

Products Description

4K Ultra-high resolution

Using 1/2.5-inch UHD CMOS sensor with a maximum of 8.51 megapixels, high quality images in 4K (3840x2160) can be achieved. And downward compatible with 1080P, 720P and other resolutions.

All-in-One Design

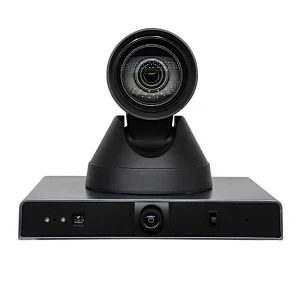

All-in-One design, can output panorama and close up HD video at the same time.

Intelligent teaching tracking

Built-in leading image recognition and tracking algorithm, without any auxiliary positioning camera or tracking host to achieve smooth and natural tracking effect.

71° Wide-angle Lens + 12x optical Zoom

Exclusive customized high-quality true 8 million ultra-high resolution 4K ultra wide-angle lens, 12x optical zoom, horizontal field of view up to 71°.

Rich and complete interface

Support HDMI2.0 HD output, and also equipped with 3G-SDI interface, the effective transmission distance up to 150 meters (1080p30). HDMI, 3G-SDI, USB3.0, LAN four channels can simultaneously output high-definition digital signals.

Close-up Camera
Video System	4K@30/25/29.97, 1080p/60/50/30/59.94/29.97, 1080i/60/50/59.94, 720p/60/59.94
Sensor	1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode	Progressive
Lens	12x, f4.4mm ~ 52.8mm, F1.8 ~ F2.6
Digital Zoom	16x
Panorama Camera
Video System	4K@30/25/29.97, 1080p/60/50/30/59.94/29.97, 1080i/60/50/59.94, 720p/60/59.94
Sensor	1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode	Progressive
Lens Mount	M12 Mount
Teacher Panorama Lens	f=8.0mm, AoV about 42°(default, changeable)
Student Panorama Lens	f=3.24mm, AoV about 84° (default, changeable)

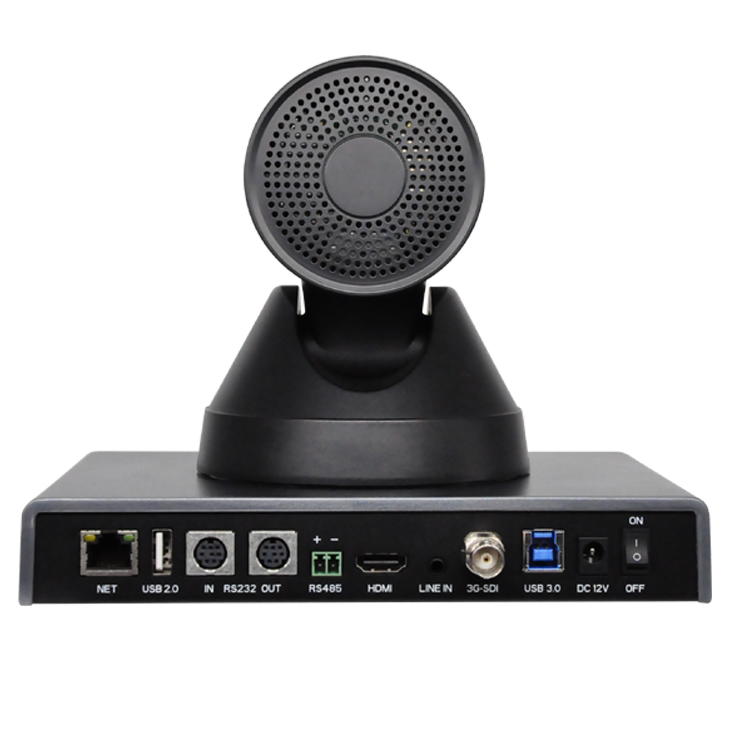

Input/Output Interface
HD Output	1xHDMI: Version 2.0
HD Output		1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface	1xRJ45: 10M/100M/1000M Ethernet Interface, POE supported
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB Interface	1xUSB3.0, Type-B 1xUSB2.0, Type-A
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol
		1xRS232 Out: 8pin Min DIN, Max Distance: 30m
		1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	DC-005/Φ2.0 type (DC IN 12V)
