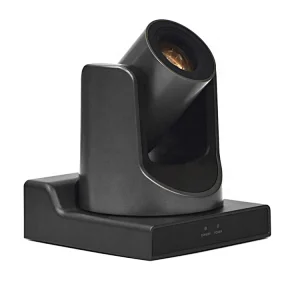

2MP 1080p60 RTMP IP RTSP HDMI Camera PTZ 20x 4k PTZ Camera For Live Streaming

2MP 1080p60 RTMP IP RTSP HDMI Camera PTZ 20x 4k PTZ Camera For Live Streaming

Model NO.: VHD-V60CL
Minimum order quantity:: 1 set
Supply Ability:: 500.0 set / Day
Country of Origin:: Shenzhen

Quantity:

Product Description

Product Name:RTMP IP RTSP HDMI Camera PTZ 20x Optical Zoom Streaming Church
Video Format:1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25 etc.
Sensor:1/2.8'', CMOS, Effective Pixel: 2.07M
Scanning Mode:Progressive
Lens:20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Video S/N:≥55dB
Input/Output Interface:HDMI; SDI; RJ45; RS232; RS485
Input Voltage:DC 12V
Size:146mm x 152mm x 165mm
Net Weight:1.35kg
Type:Network Conference System
Type:Video Conference System
Simultaneous Interpretation:No
Function:Video Conference
Model Number:VHD-V60CL
Brand Name:VHD
Place of Origin:CN;GUA

Products Description

1080P Full HD

1/2.8 inch sensor, 2.07 million effective pixels, maximum 1920 x 1080 resolution.

Multiple Interfaces

HDMI, SDI, Network can output at the same time,

Local Storage

Support U disk local storage, local recording directly without NVR.

AAC Audio Encoding

Support AAC audio encoding, better sound quality and smaller bandwidth.

20x Optical + 16x Digital Zoom

Use high quality super telephoto lens, support 20x optical zoom, and 16x digital zoom(optional).

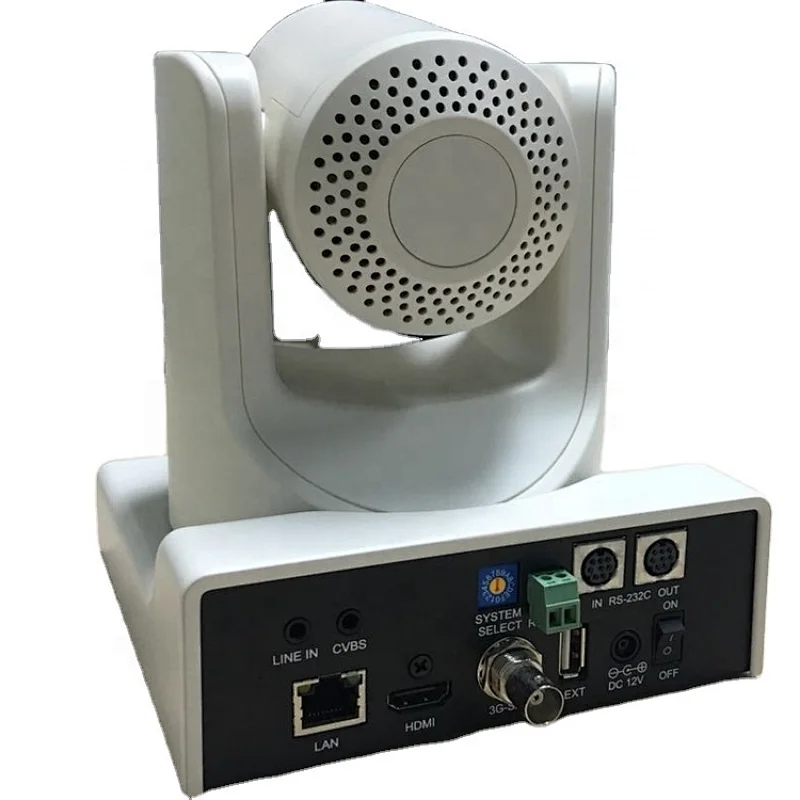

Input/Output Interface
HD Output	1xHDMI: Version 1.3
		1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output	1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface	1xRJ45: 10M/100M Ethernet Interface
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB2.0: Type A female jack
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
		1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
		1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)

Applications

Big Meeting Rooms

MiddleMeeting Rooms

Company Profile

Get to Know About VHD

ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded in 2008, VHD has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.

VHD's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.

We welcome customers from all over the world! OEM/ODM available!

Certifications

Exhibition

Recommend Products

FAQ

1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.

2.Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.

3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.

4.Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.

5.Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.

6.Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
